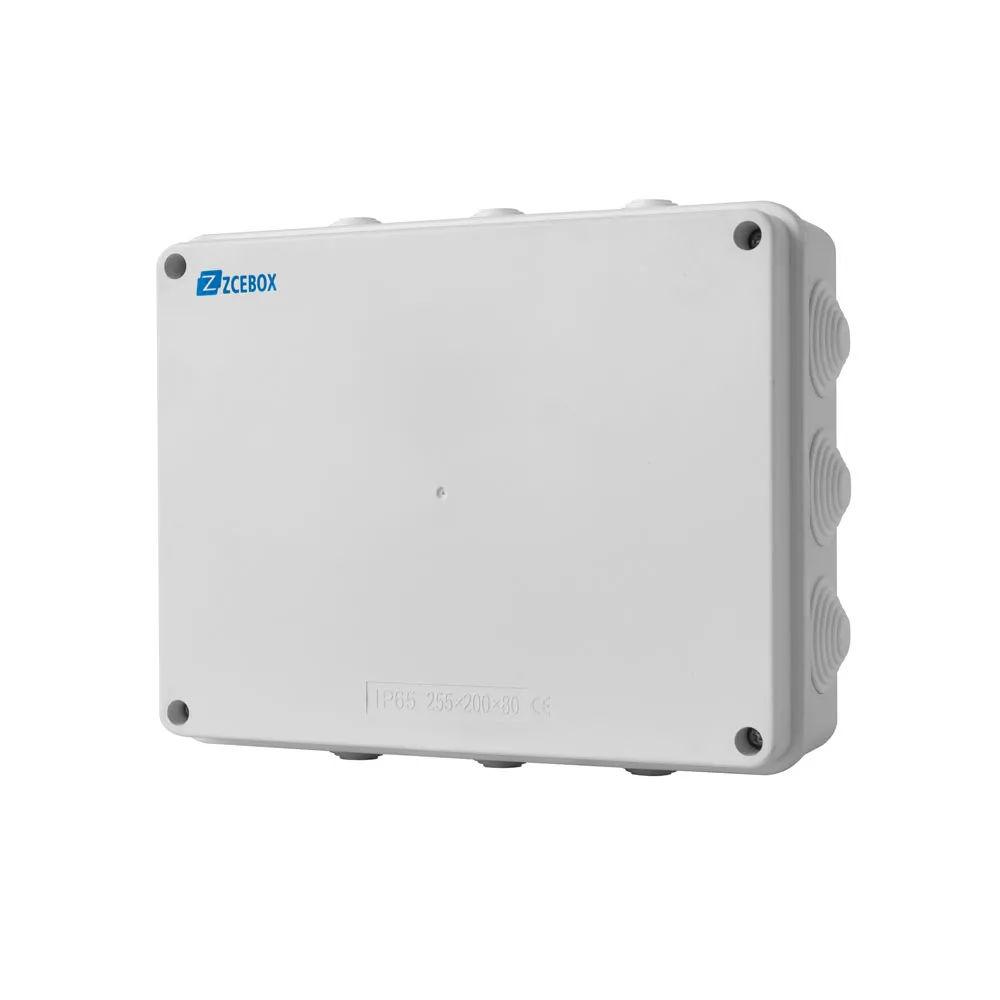

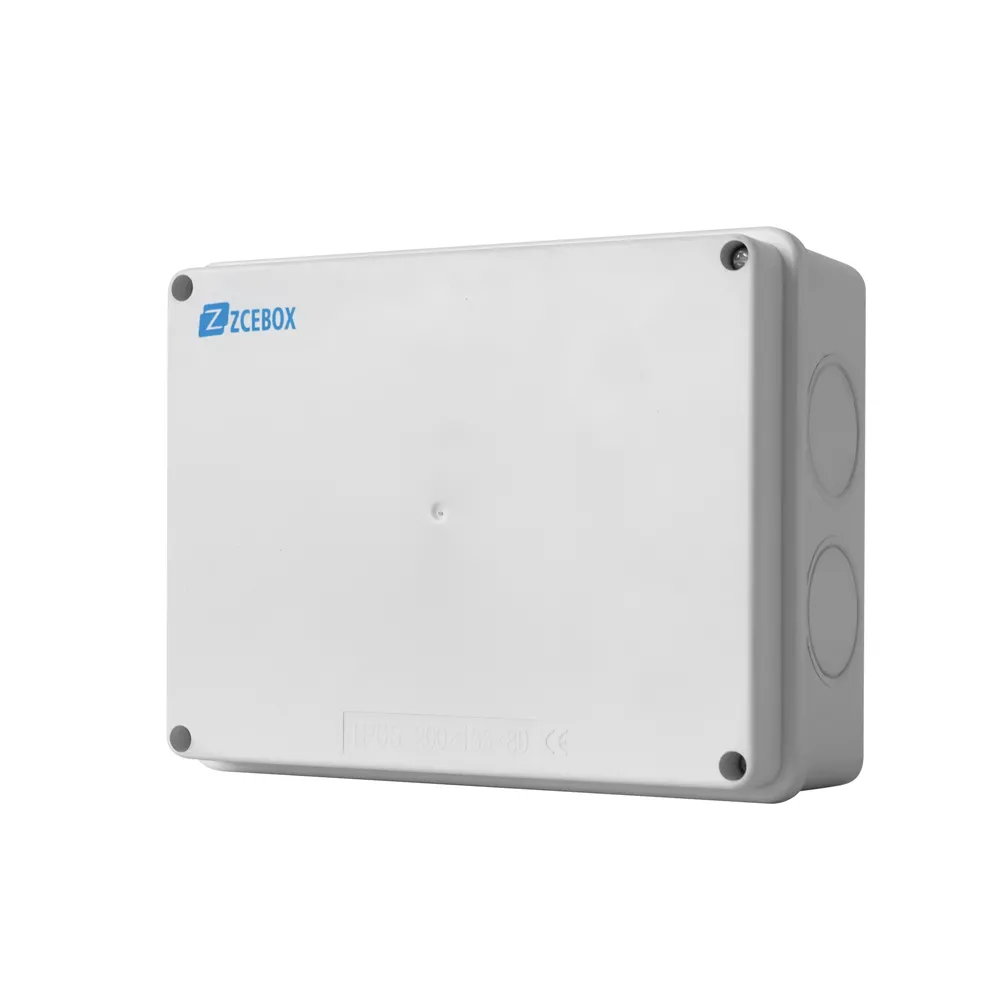

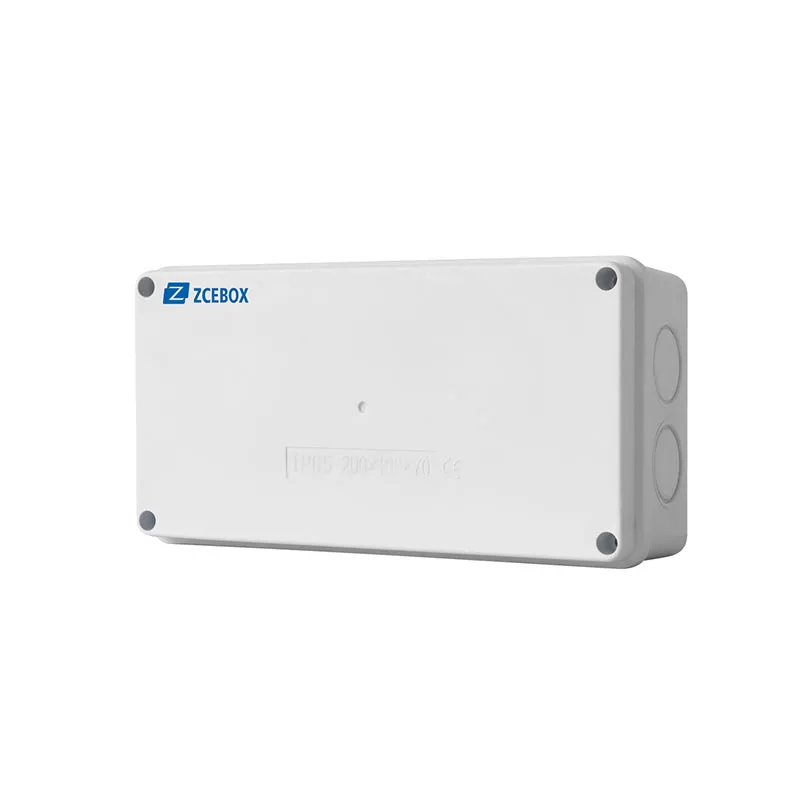

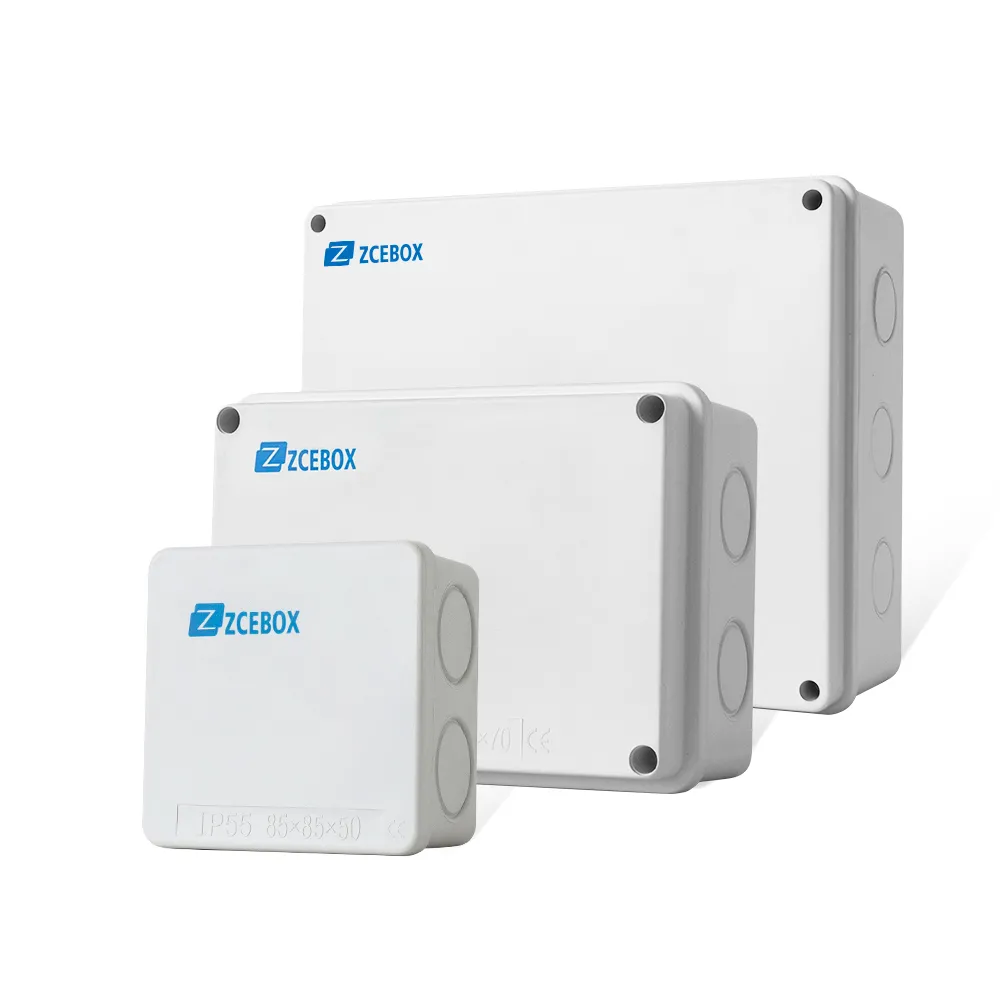

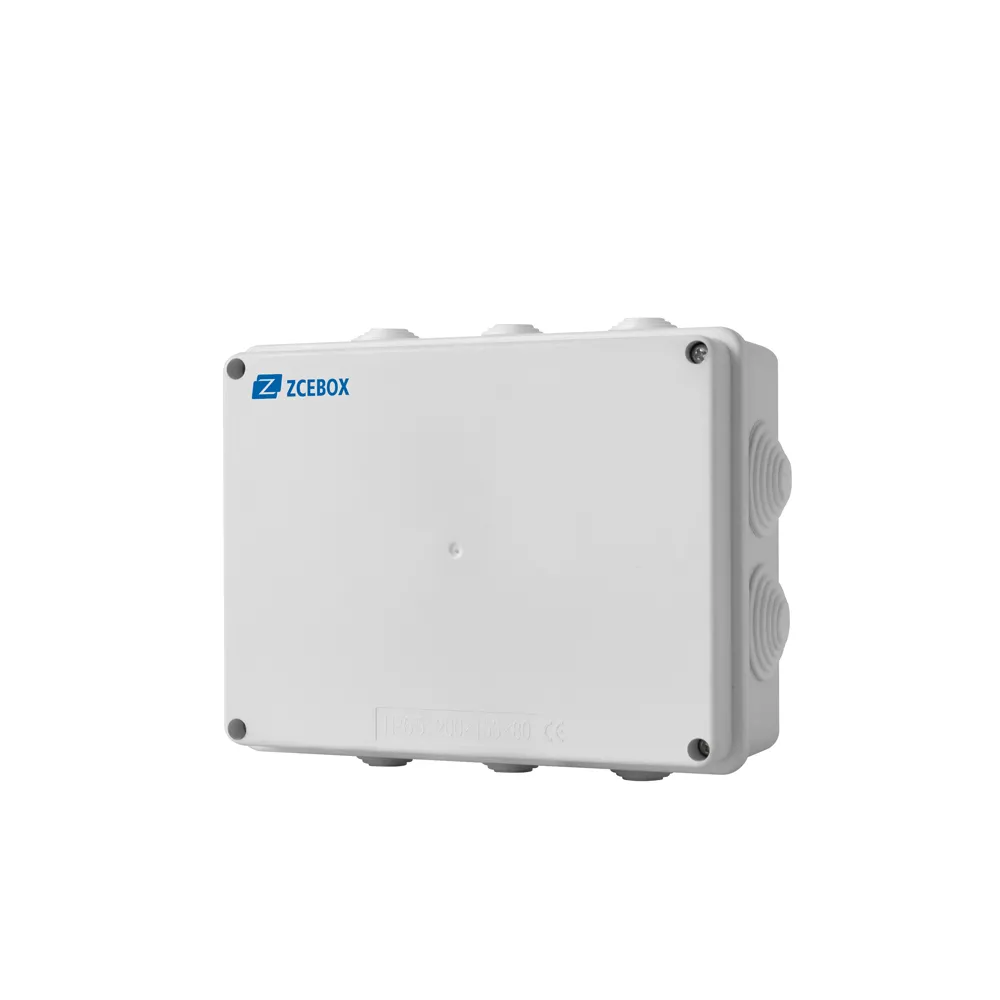

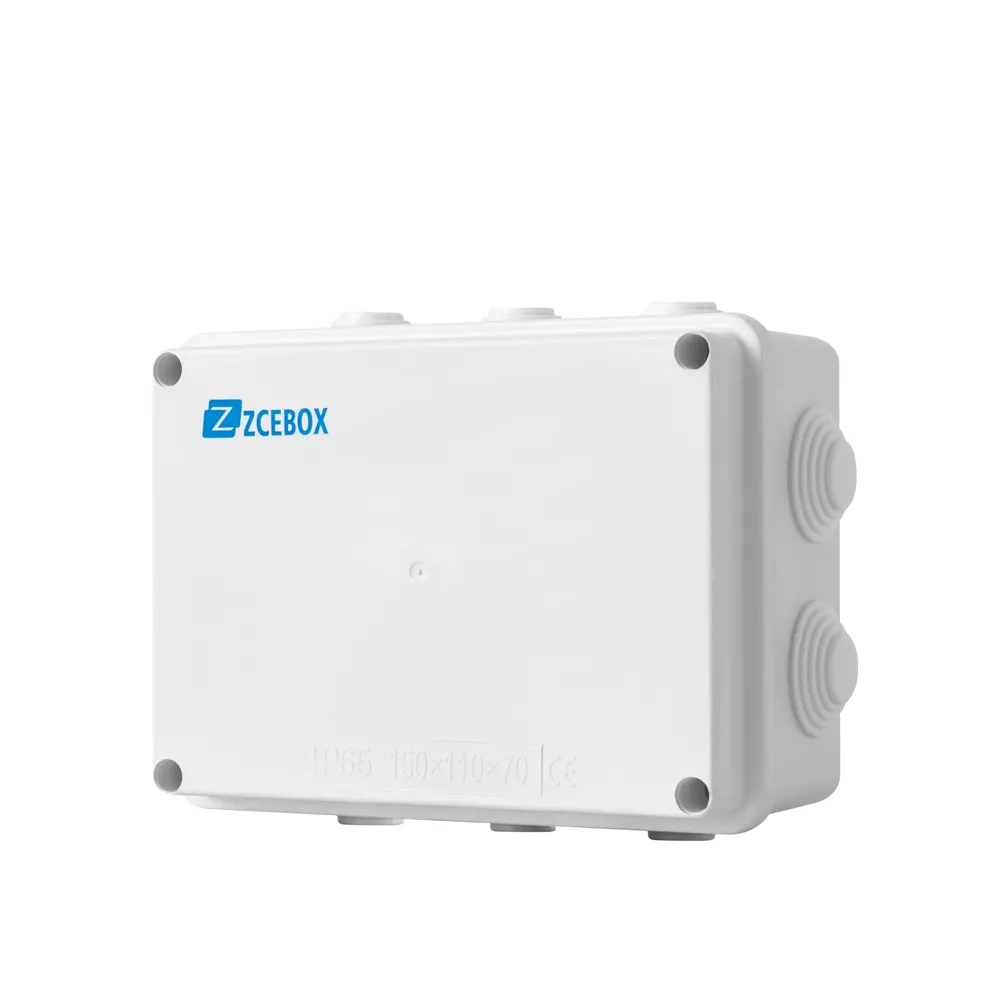

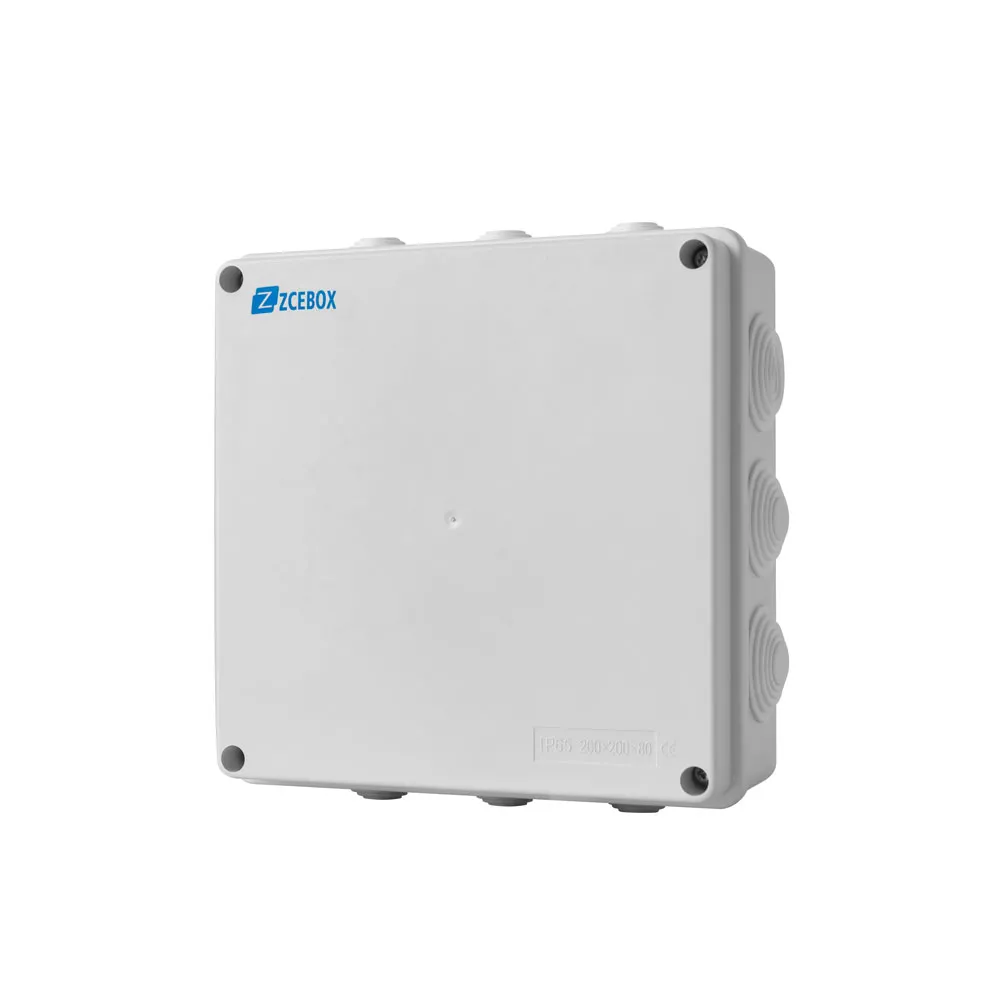

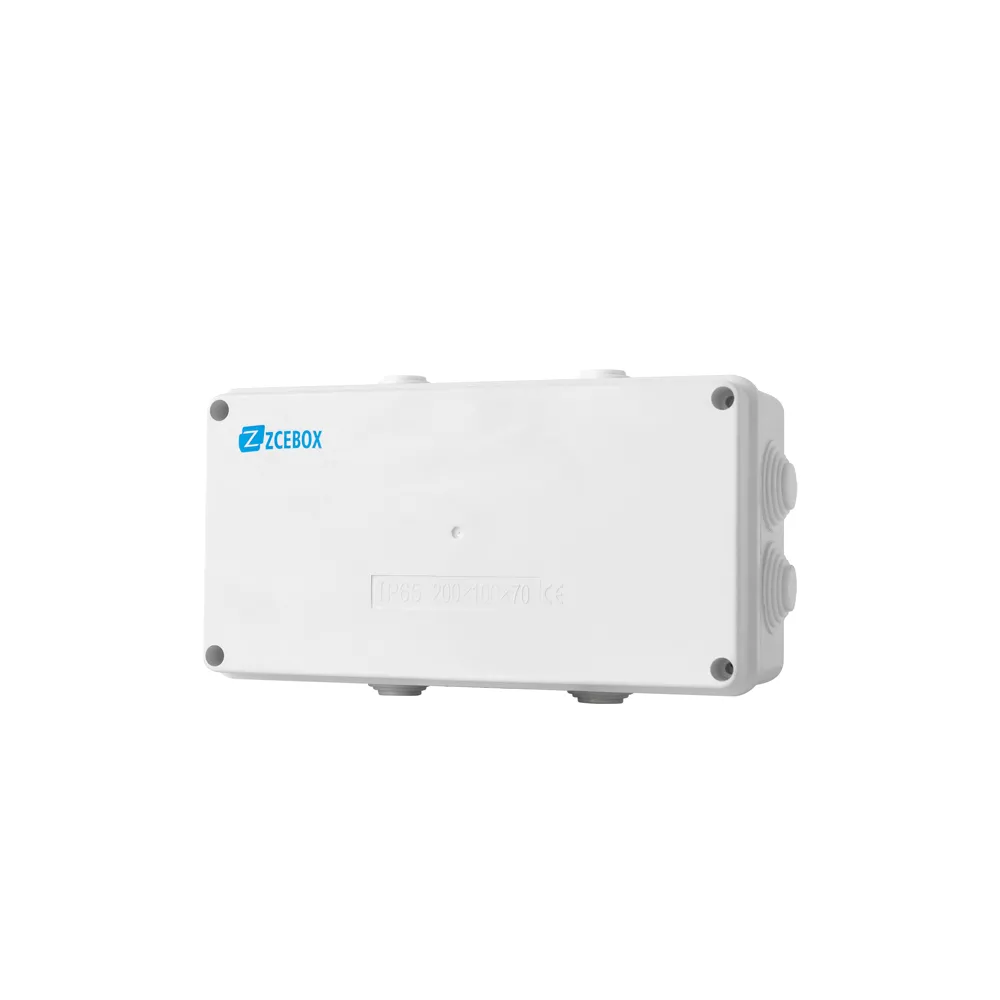

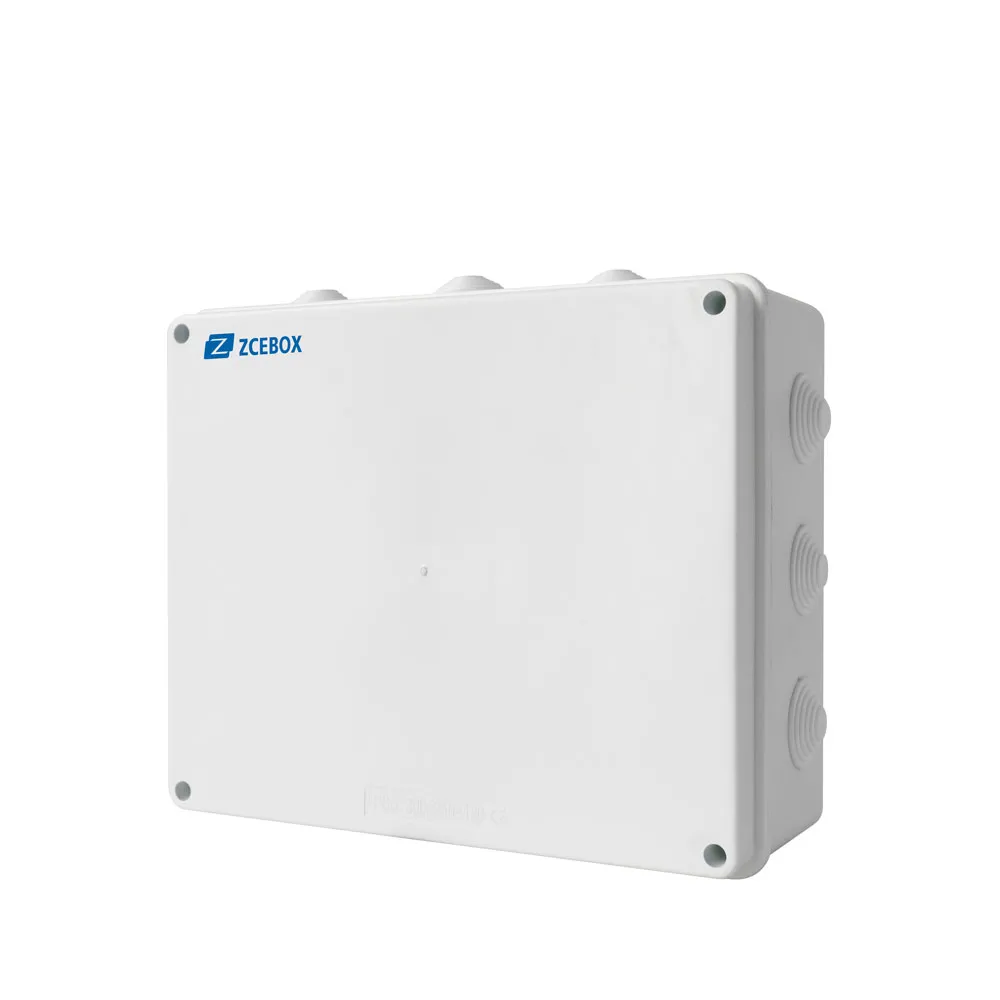

LWBA&BT Plastic Junction Box
Model Number：LWBA 5050
① Output capacity: 25 containers per month.
② Cooperate with multiple well-known brands, including Delixi, Weg, Honeywell.
③ Provide customers with OEM and ODM services.
④ Delivery can be coordinated, the shortest delivery 15 days.
Introduction

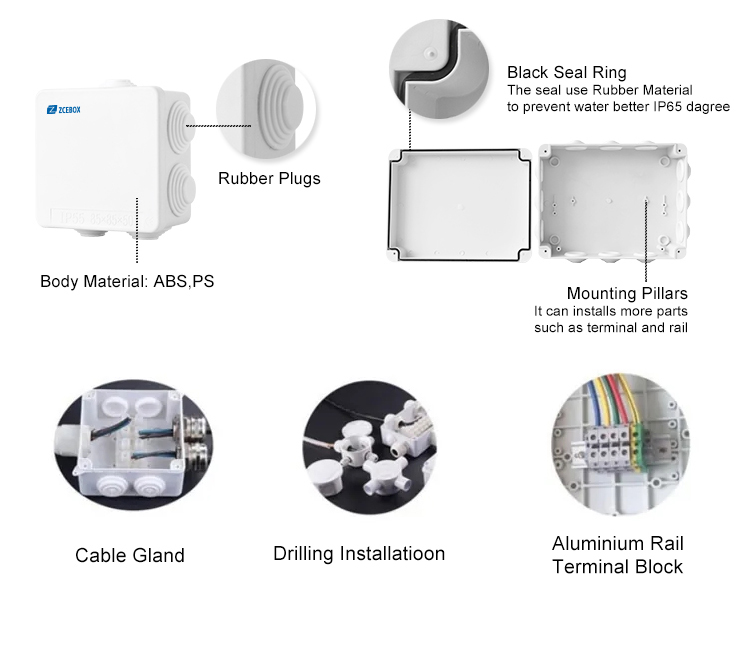

It is made of materials such as ABS and PS, with elegant external apprearance and firm performance. Cover and bottom are combined by screws. The weight of plastic enclosure is the quarter of iron enclosure. So the finished products can be easily transported and installed. All the products are with anti-corrosion performance and good insulation performance.
Products Description

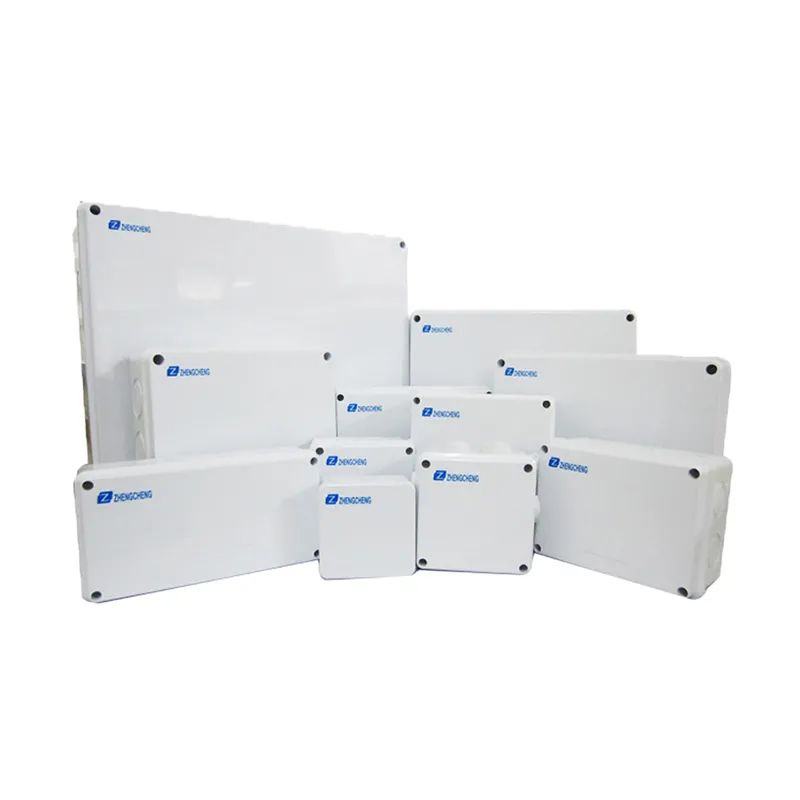

| Waterproof junction Box LWBA&LWBT Series | |
| Standard | IEC60529 |
| Approval | CE,RoHS,HF test,IK test,ISO9001 |
| Protection degree | IP65/IP55 |
| Materials | ABS |
| Storage temperature | -40~+75°C |
| Ambient temperature | -5~+40°C,max.95% humidity |
| Model | Sizes（mm） | （P）L*W*H | QTY/CTN | ( C )W*H*D |
| LWBT5050 | 4/25 | 50*50 | 300 | 370*440*460 |
| LWBT8050 | 4/25 | 80*50 | 240 | 445*530*490 |
| LWBT808050 | 7/25 | 80*80*50 | 200 | 710*445*270 |
| LWBT858550 | 7/25 | 85*85*50 | 200 | 710*445*270 |
| LWBT10010070 | 7/25 | 100*100*70 | 100 | 560*560*285 |
| LWBT15015070 | 7/25 | 150*150*70 | 60 | 645*365*400 |
| LWBT15011070 | 10/25 | 150*110*70 | 60 | 630*475*360 |
| LWBT20010070 | 8/25 | 200*100*70 | 60 | 630*420*360 |
| LWBT20015580 | 10/36 | 200*155*80 | 40 | 625*410*405 |
| LWBT20020080 | 12/36 | 200*200*80 | 40 | 820*420*415 |
| LWBT25020080 | 12/36 | 250*200*80 | 40 | 805*520*405 |
| LWBT300250120 | 12/36 | 300*250*120 | 20 | 630*530*630 |
| LWBT400350120 | 16/36 | 400*350*120 | 10 | 720*415*610 |
| Model | Sizes（mm） | （P）L*W*H | QTY/CTN | ( C )W*H*D |

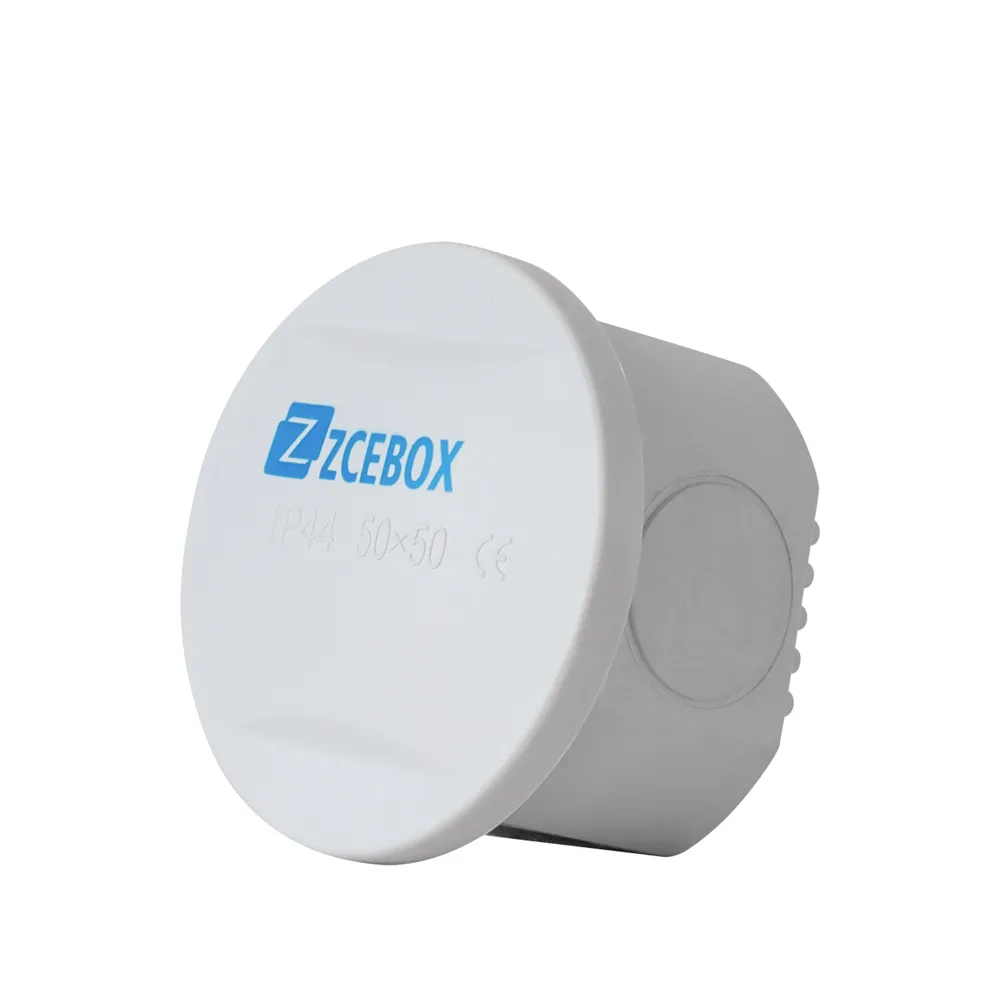

| LWBA5050 | 4/25 | 50*50 | 300 | 375*445*460 |
| LWBA8050 | 4/25 | 80*50 | 240 | 450*535*490 |
| LWBA808050 | 7/25 | 80*80*50 | 200 | 715*450*270 |
| LWBA858550 | 7/25 | 85*85*50 | 200 | 715*450*270 |

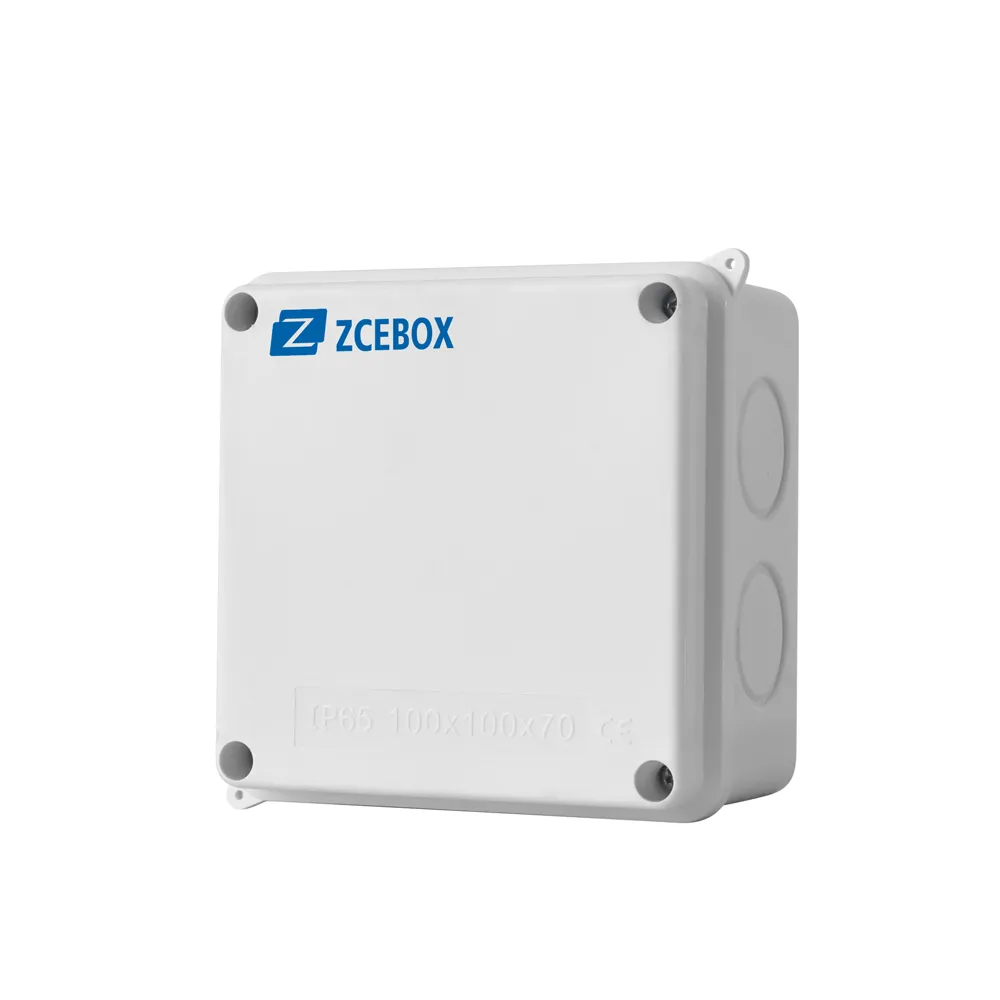

| LWBA10010070 | 7/25 | 100*100*70 | 100 | 565*565*285 |
| LWBA15015070 | 7/25 | 150*150*70 | 60 | 630*370*400 |
| LWBA15011070 | 10/25 | 150*110*70 | 60 | 635*480*360 |
| LWBA20010070 | 8/25 | 200*100*70 | 60 | 635*425*360 |
| LWBA20015580 | 10/36 | 200*155*80 | 40 | 630*415*405 |
| LWBA20020080 | 12/36 | 200*200*80 | 40 | 825*425*415 |
| LWBA25020080 | 12/36 | 250*200*80 | 40 | 810*525*405 |
| LWBA300250120 | 12/36 | 300*250*120 | 20 | 630*530*630 |
| LWBA400350120 | 16/36 | 400*350*120 | 10 | 720*415*610 |
About Us
ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, junction box,MCB,consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
Why Choose Us
Certifications

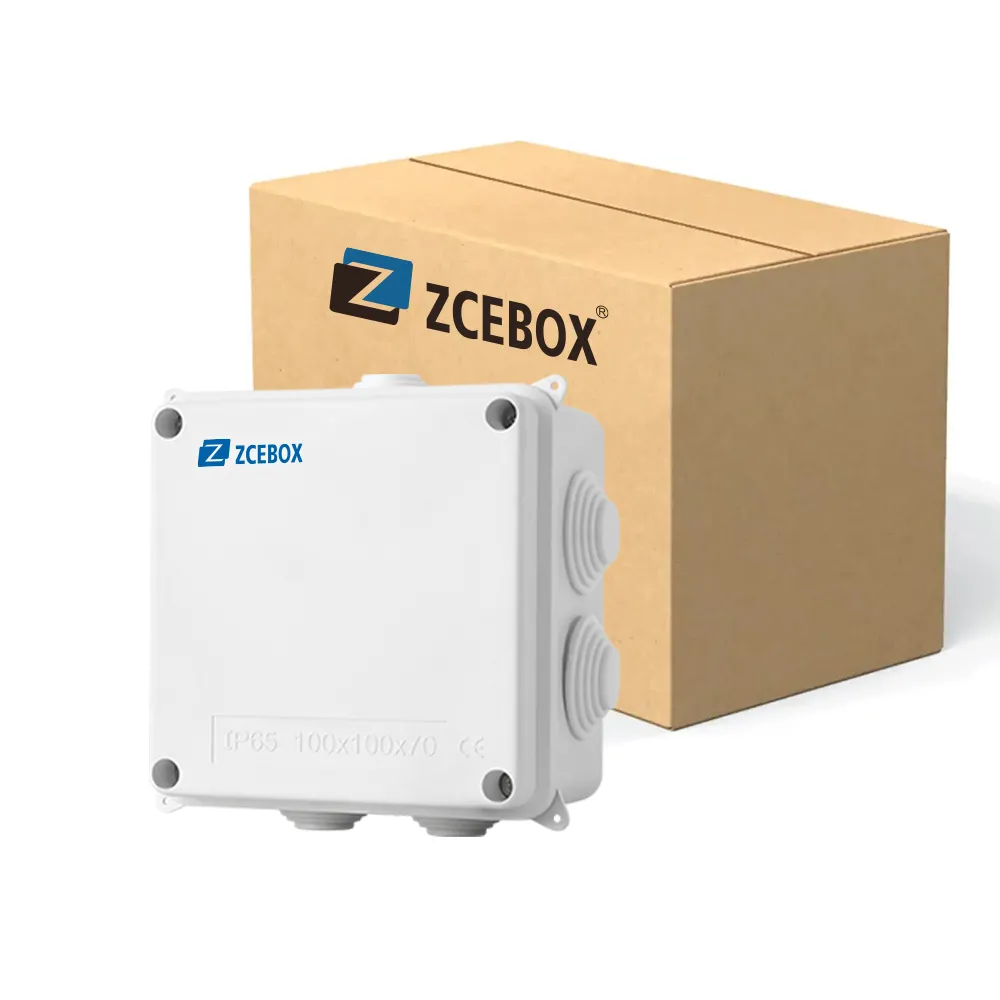

Packaging&Shipping
Our Exhibition
Installation Case
Customize products for your project!
Get Questions
Frequently Asked Questions
Q: What is the difference between LWBA and LWBT?
A: BA does not have a stopper, BT has a stopper
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which certificate do you have?
A: CE, CB,RoHS, HF and ISO9001 certification.
Q: Do you have the test and audit service?
A: Yes, we can assist to get the designated test report for product and the designated factory audit report.
