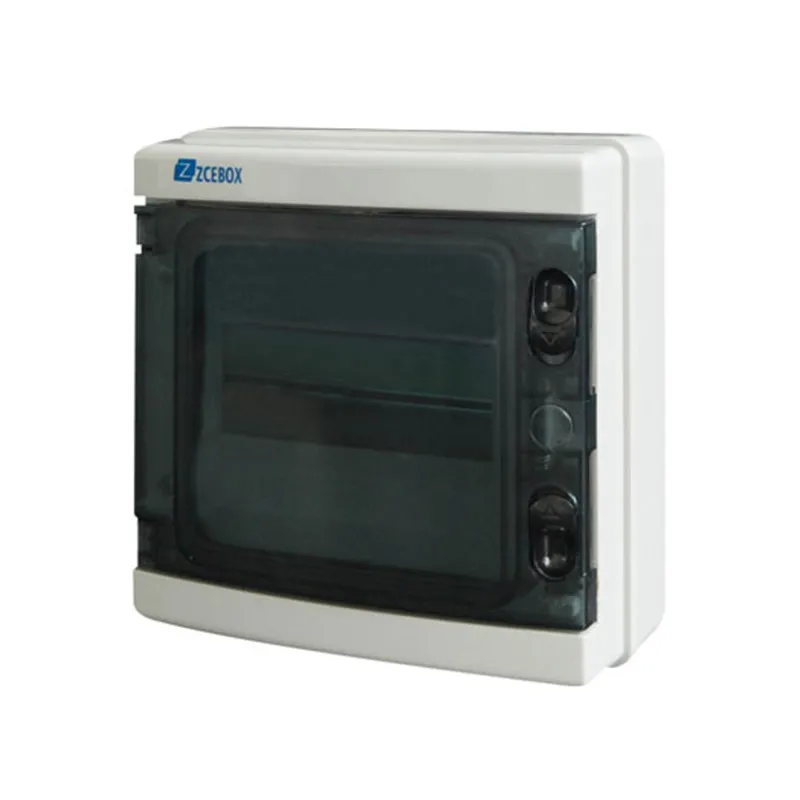

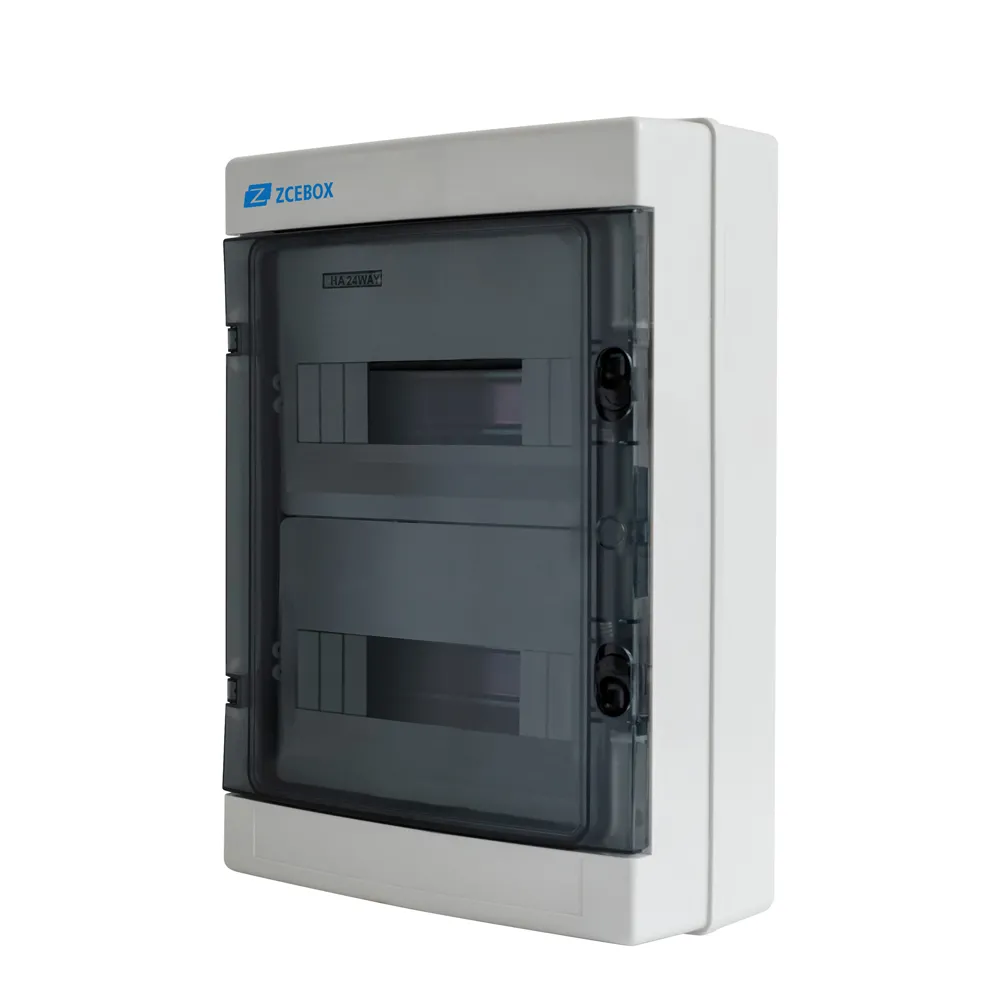

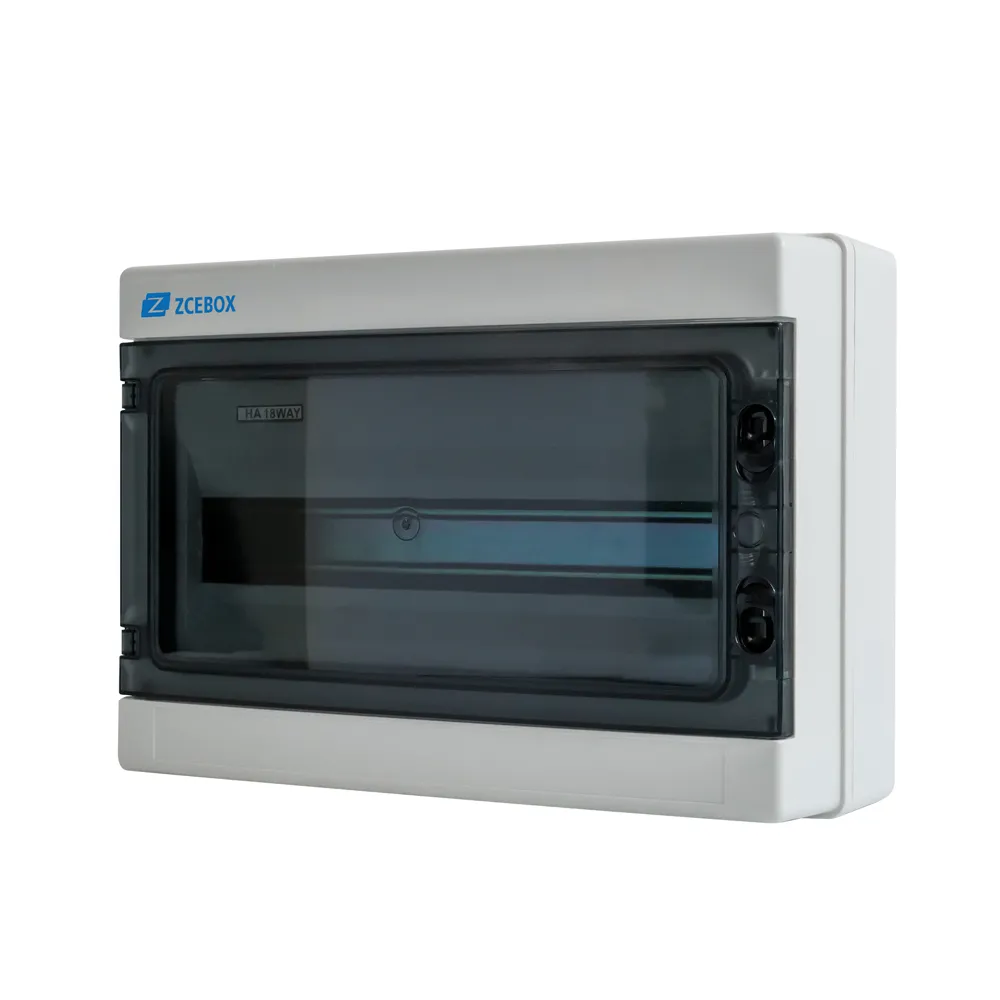

LWHA Customized Distribution Box
Model Number：LWHA-4
① Output capacity: 25 containers per month.
② Cooperate with multiple well-known brands, including Delixi, Weg, Honeywell.
③ Provide customers with OEM and ODM services.
④ Delivery can be coordinated, the shortest delivery 15 days.
Introduction
Made of strength ABS and PC material, the enclosure has beautiful appearance, high plasticity and doggedness. LWHA series distribution box is suitable for terminal boxes, distribution panels, instrument boxes, electrical equipment boxes and control boxes. Moreover, it is simple and easy to use.
Products Description
| Waterproof Distribution Box LWHA | |
| Standard | IEC60439-3 |
| Approval | CE, RoHS,HF test,IK test,ISO9001 |

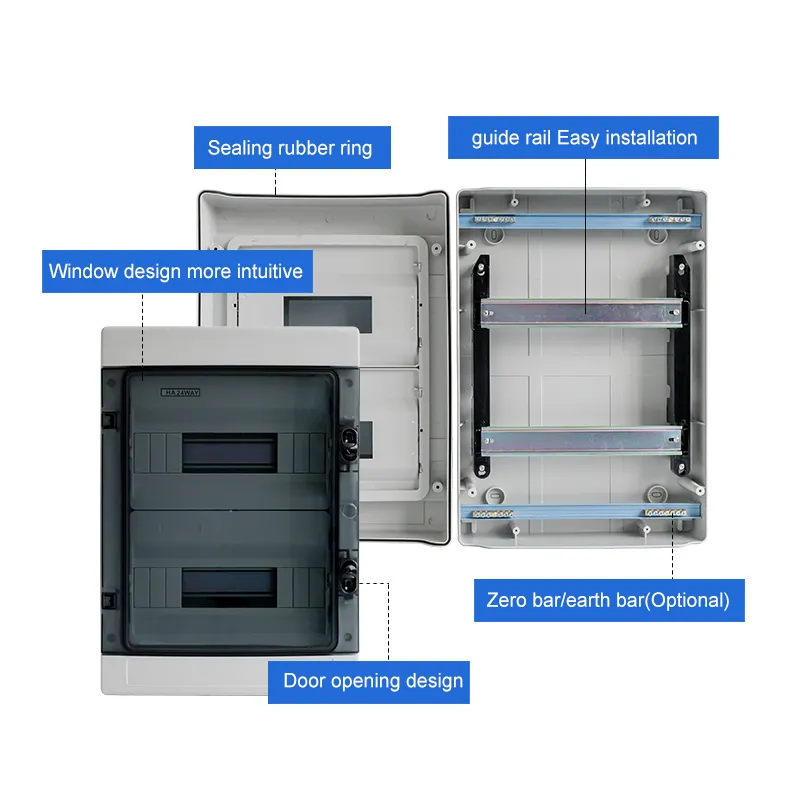

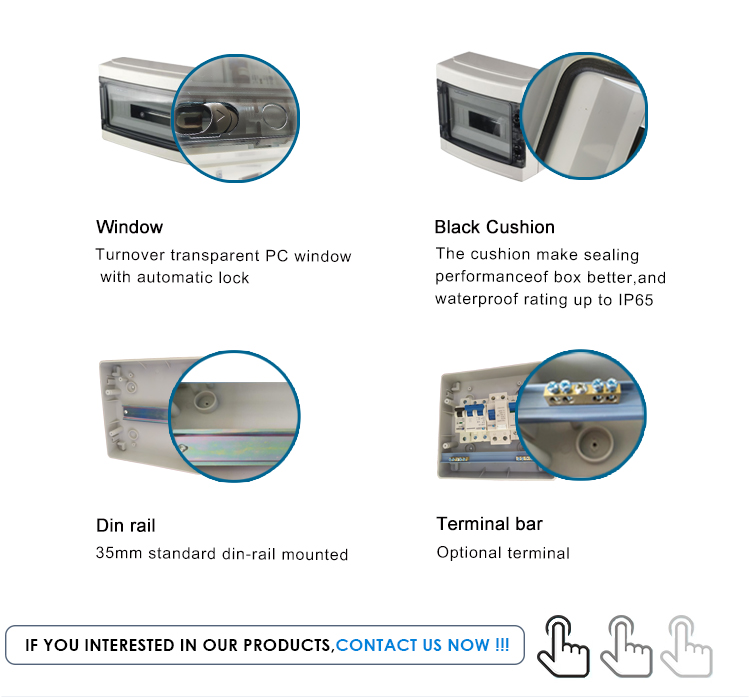

| Material | Box shell:ABS;Door:PC;Zerobar/earth bar:copper |
| Modules (No.) | 4；8；12；18；24 |
| Color of base | Gray |
| Protection grade | IP65 |
| Color of door | Transparent |
| Mounting type | Surface |
| Fire resistence | 650 °C/30s |
| Storage temperature | -40~+75°℃ |
| Ambient temperature | -5-+40°C,max. 50% humidity permitted under max +40°℃ |

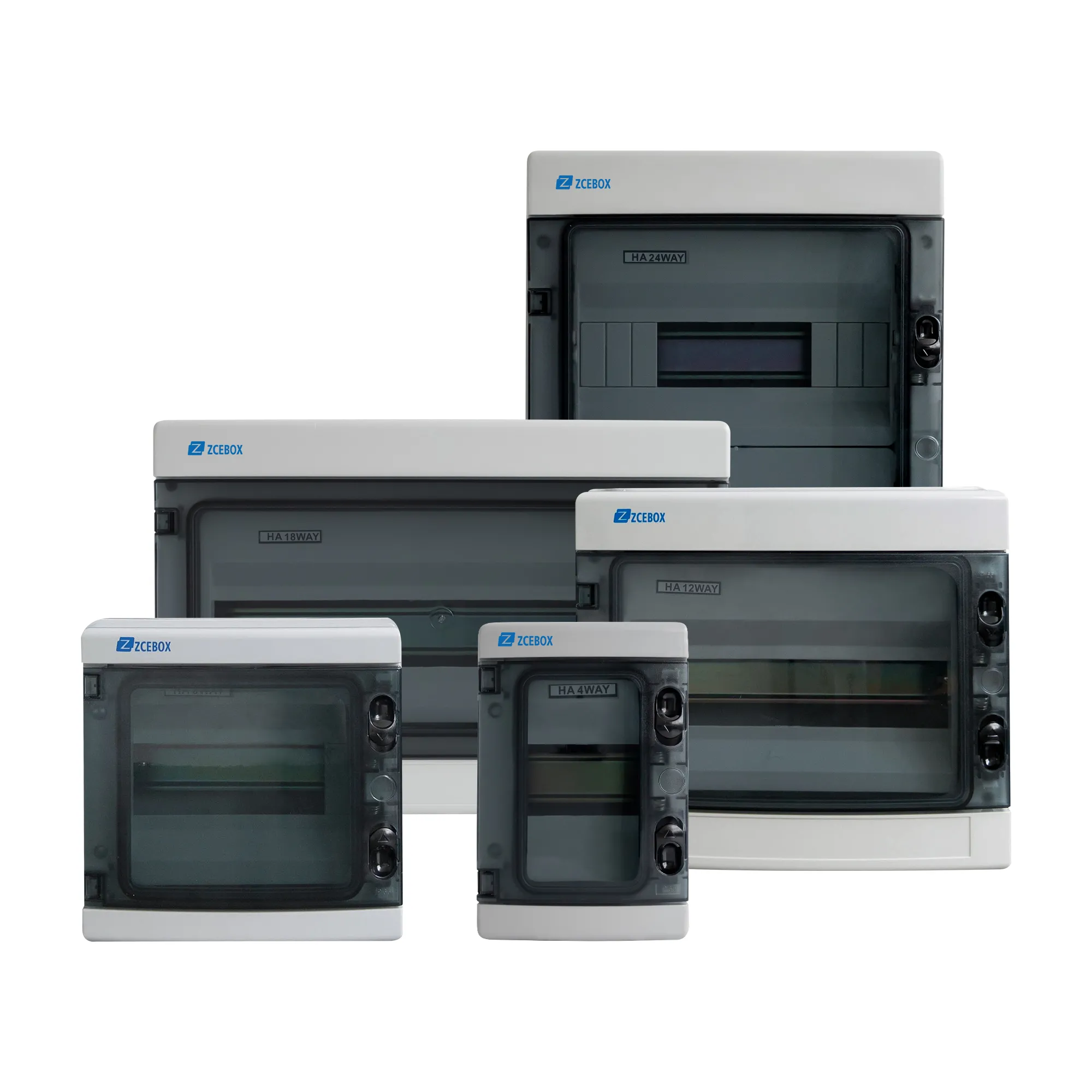

| Model | Din-rail (mm) | Terminal bar | (P)L*W*H (mm) | QTY/CTN | (C)W*H*D (mm) |

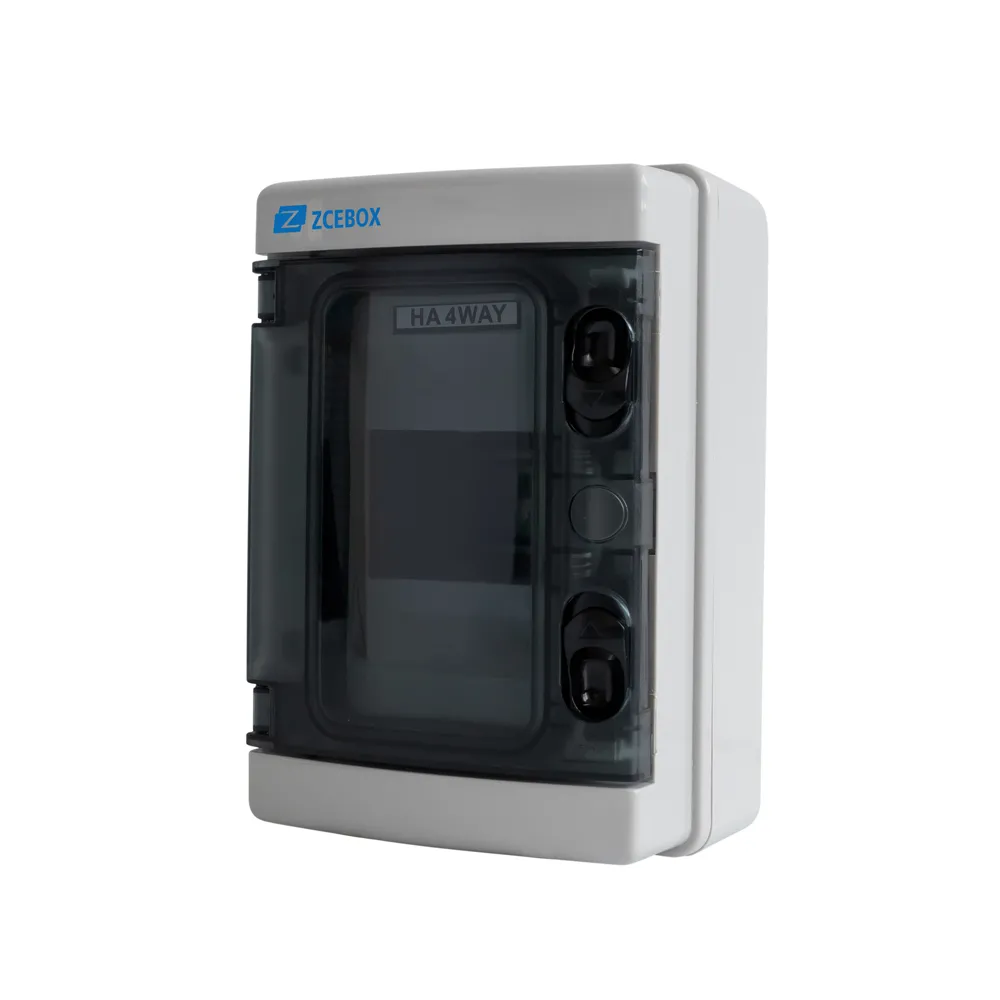

| LWHA-4 | 110 | 3+3 | 140*210*100 | 20 | 540*445*310 |
| LWHA-8 | 160 | 4+4 | 215*210*100 | 20 | 540*445*460 |

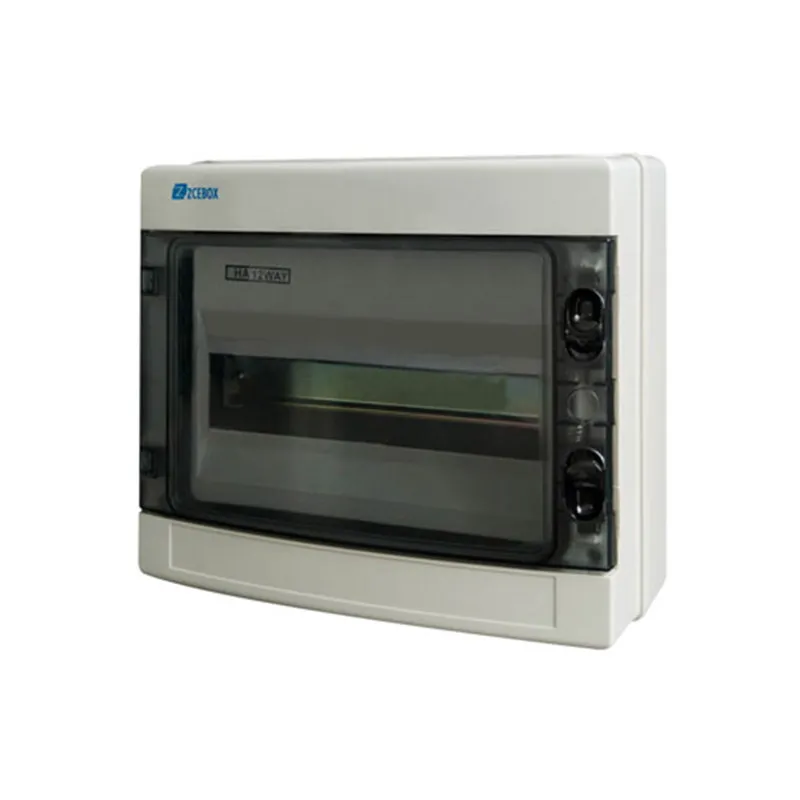

| LWHA-12 | 250 | 6+6 | 300*260*140 | 10 | 720*310*535 |
| LWHA-18 | 360 | 9+9 | 410*285*140 | 5 | 730*305*435 |
| LWHA-24 | 240 | 6+66+6 | 415*300*140 | 5 | 745*315*445 |
About Us
ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, junction box,MCB,consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
Why Choose Us
Certifications
Packaging&Shipping
Our Exhibition

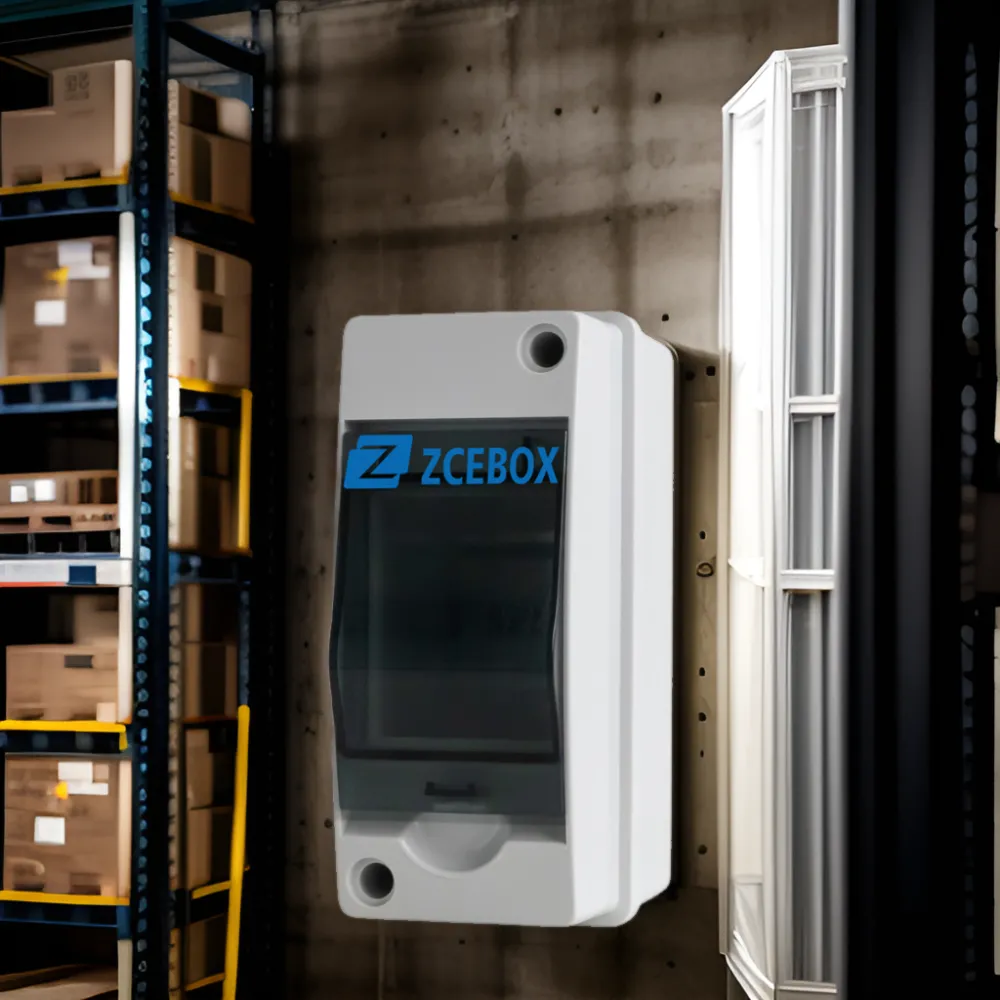

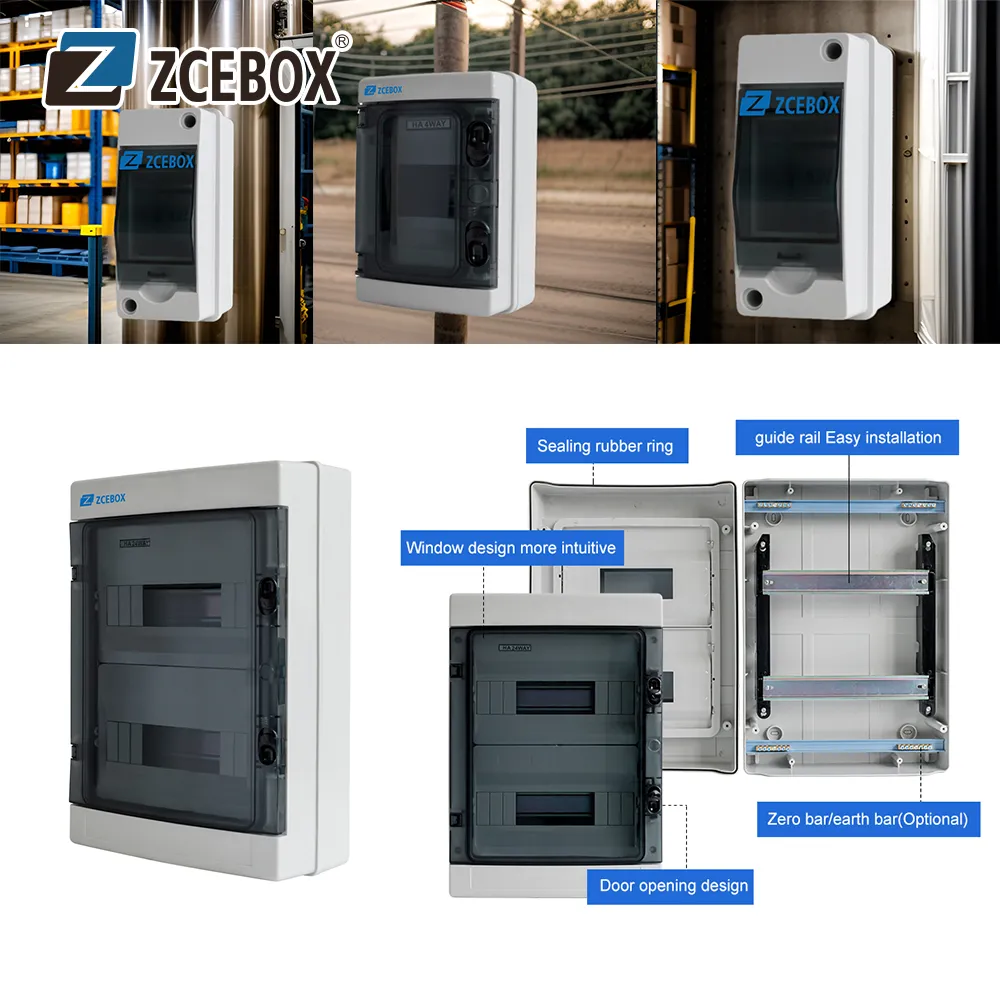

Installation Case
Customize products for your project!
Get Questions
Frequently Asked Questions
Q: Are you a factory?
A: Yes, we are factories.
Q: What are the main products of your company?
A: Complete set of distribution box, waterproof distribution box, iron box, junction box, circuit breaker, etc
Q: Which is the most cost-effective distribution box in your company?
A: Meilan surface mounted distribution box
Q: Can we provide free samples?
A: Of course, but you have to bear the freight.
Q: Is it possible to label production?
A: Of course, we can also provide design services for you
