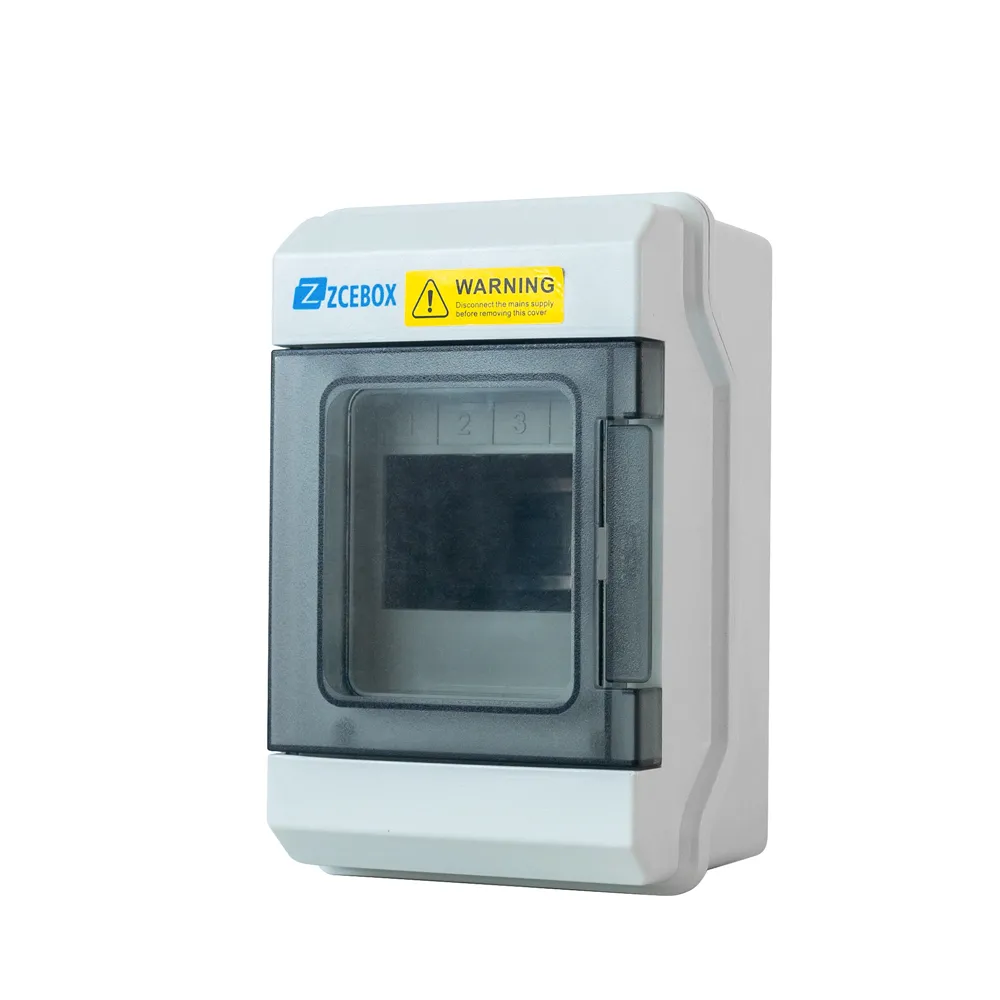

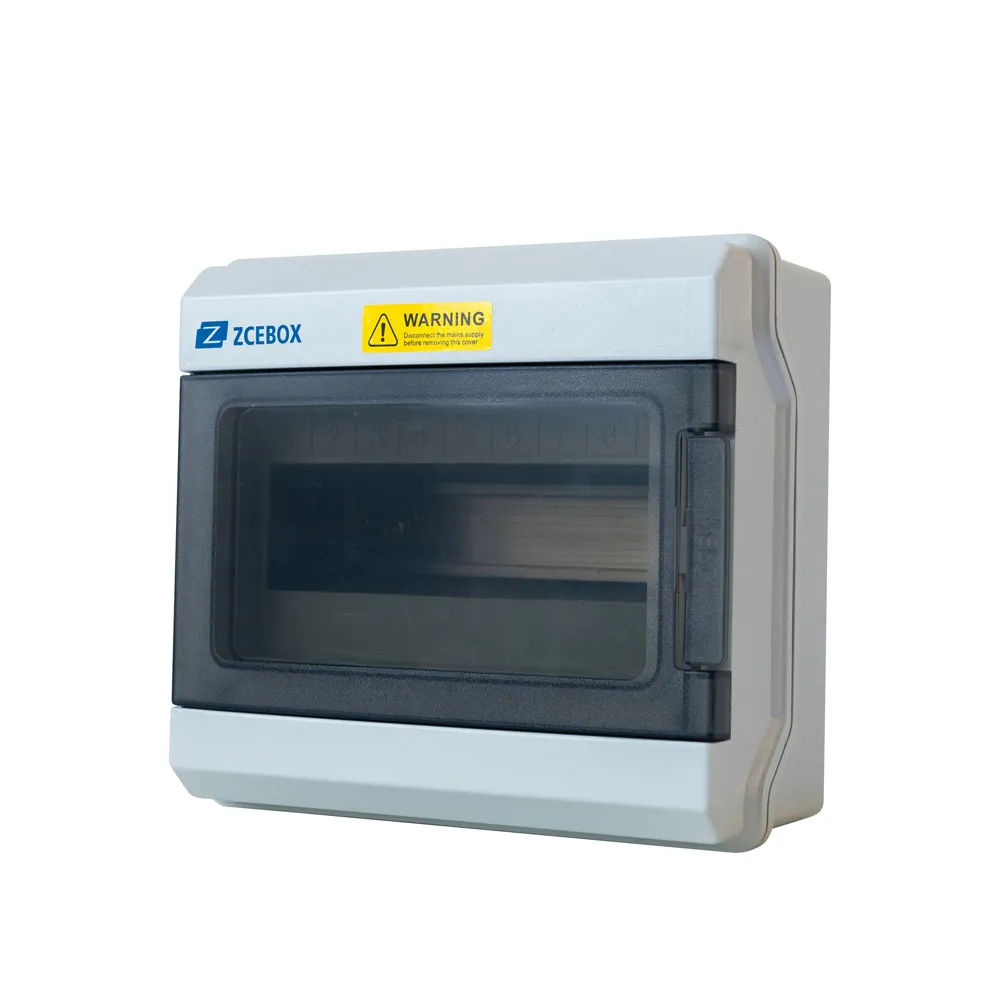

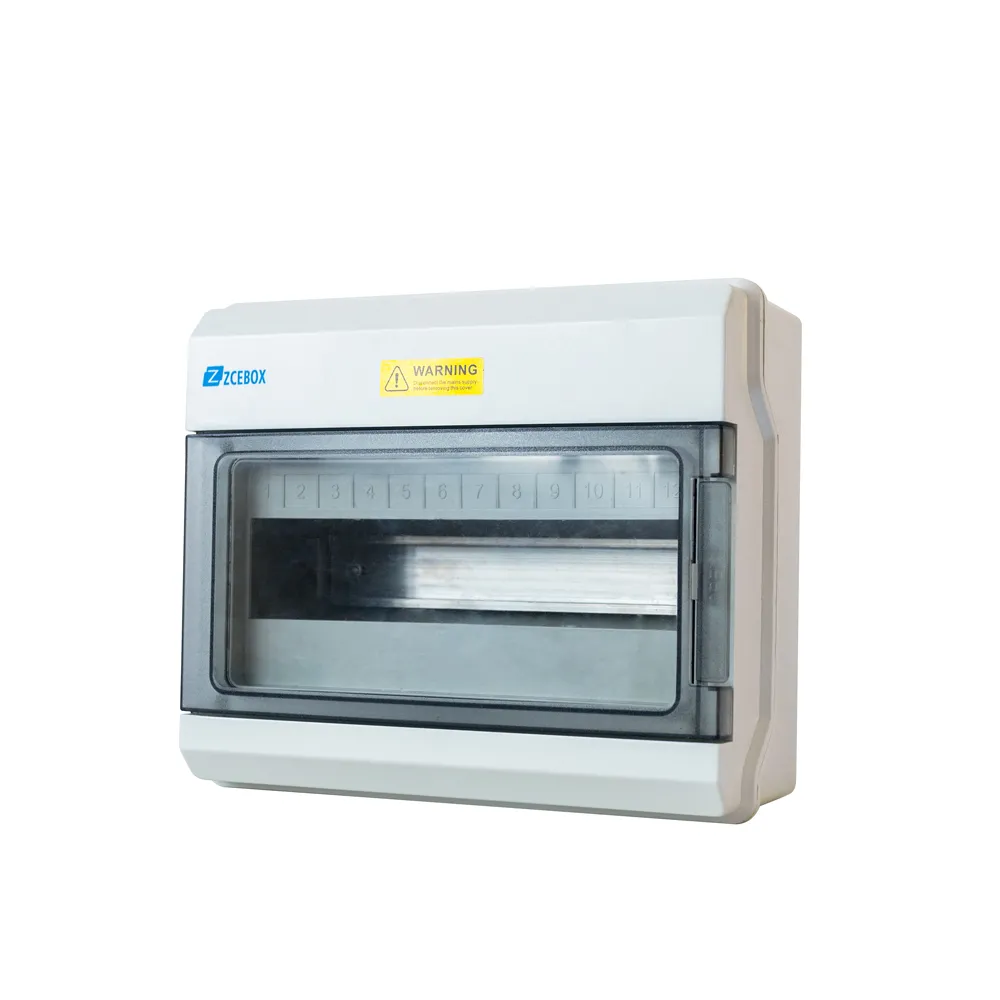

LWHC Distribution Box Factory
Model Number：LWHC-4
① Output capacity: 25 containers per month.
② Cooperate with multiple well-known brands, including Delixi, Weg, Honeywell.
③ Provide customers with OEM and ODM services.
④ Delivery can be coordinated, the shortest delivery 15 days.
Introduction

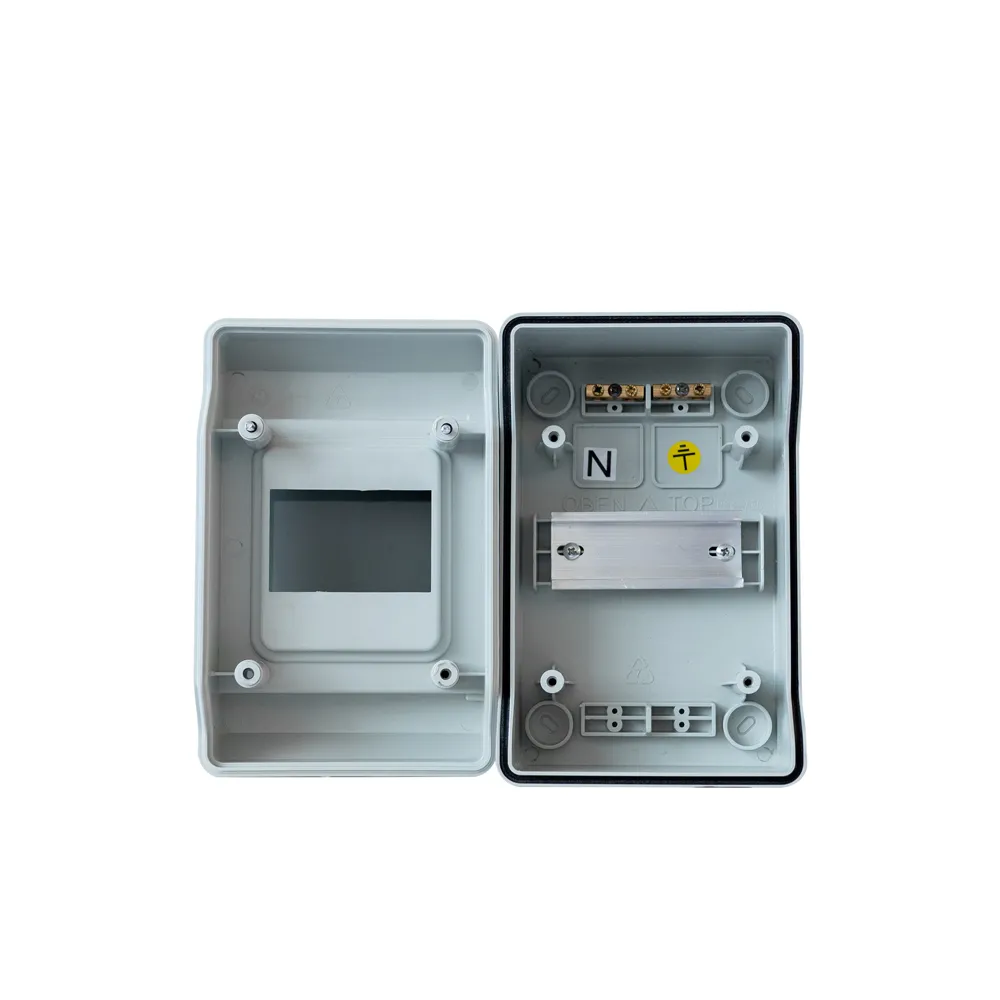

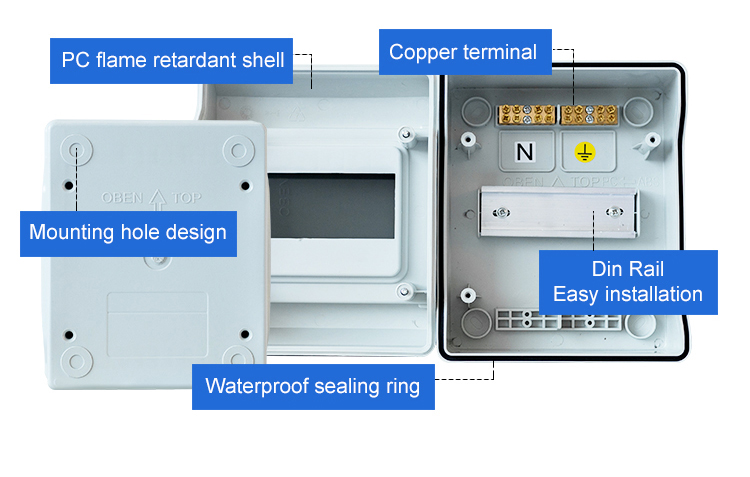

Using in high-end market, the overall panel design of this type distribution box is luxury and attractive. The material is PC which is fire resistant and anti-UV protection. Two terminals(earth copper bar and neutral copper bar) in the boxare easy for wiring and routing.
Products Description

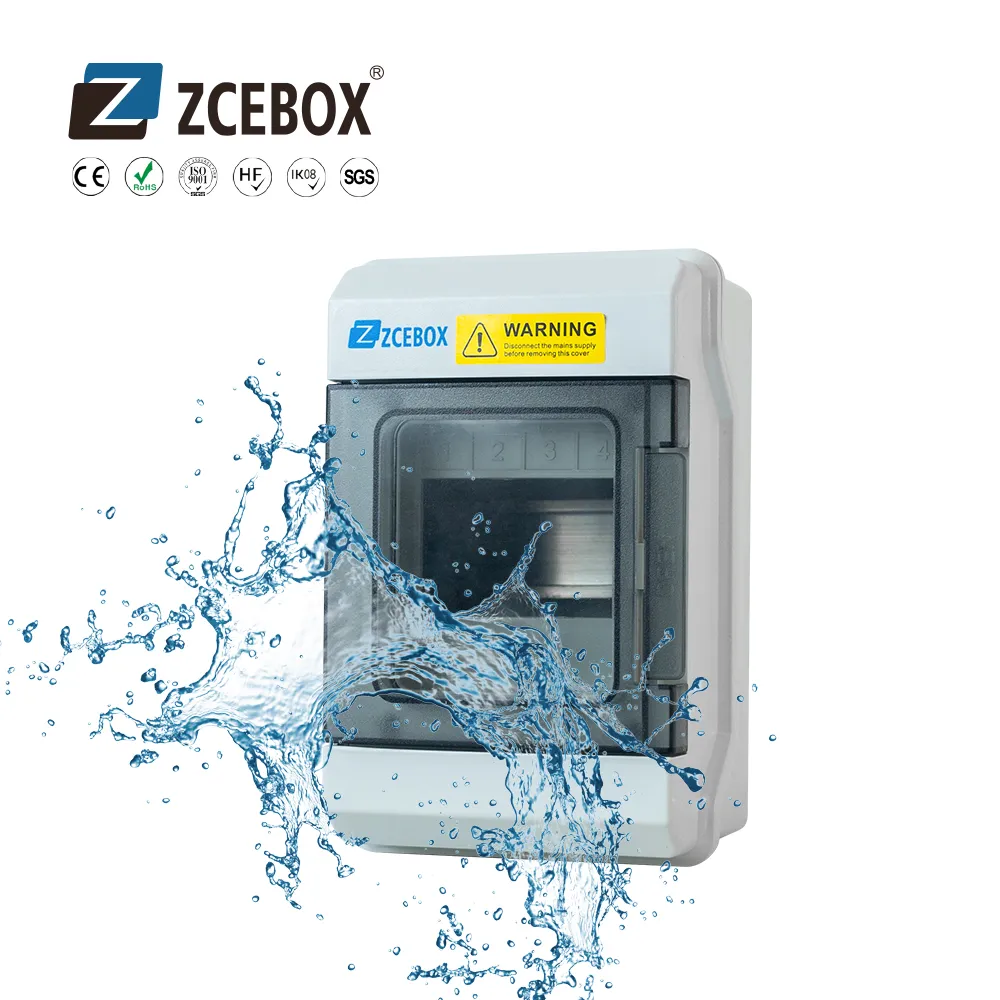

| Waterproof Distribution Box LWHC | |
| Standard | IEC60529 EN60309 |
| Approval | CE, RoHS,HF test,IK test,ISO9001 |
| Color of base | Gray |
| Modules (No.) | 4;6;9;12;18,24,36. |
| Mounting type | Surface |
| Protection grade | IP66 |
| The color of door | Transparent |

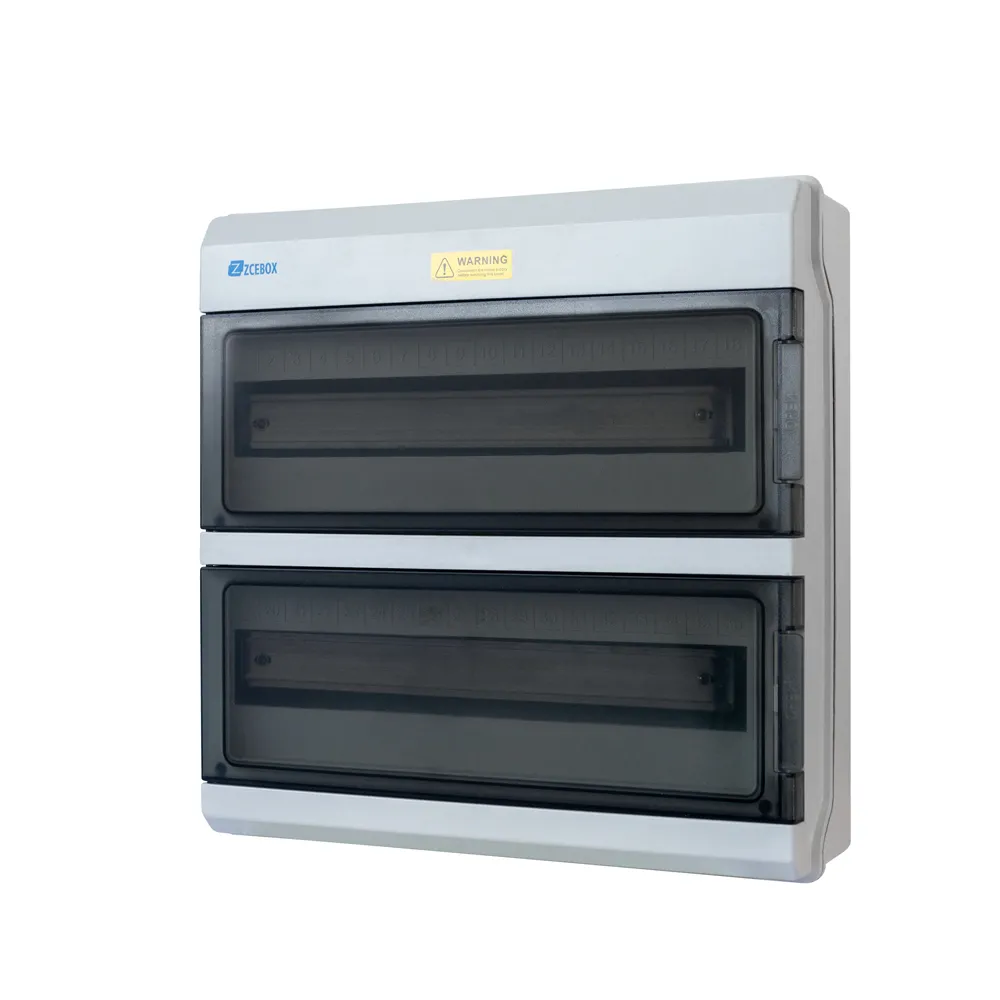

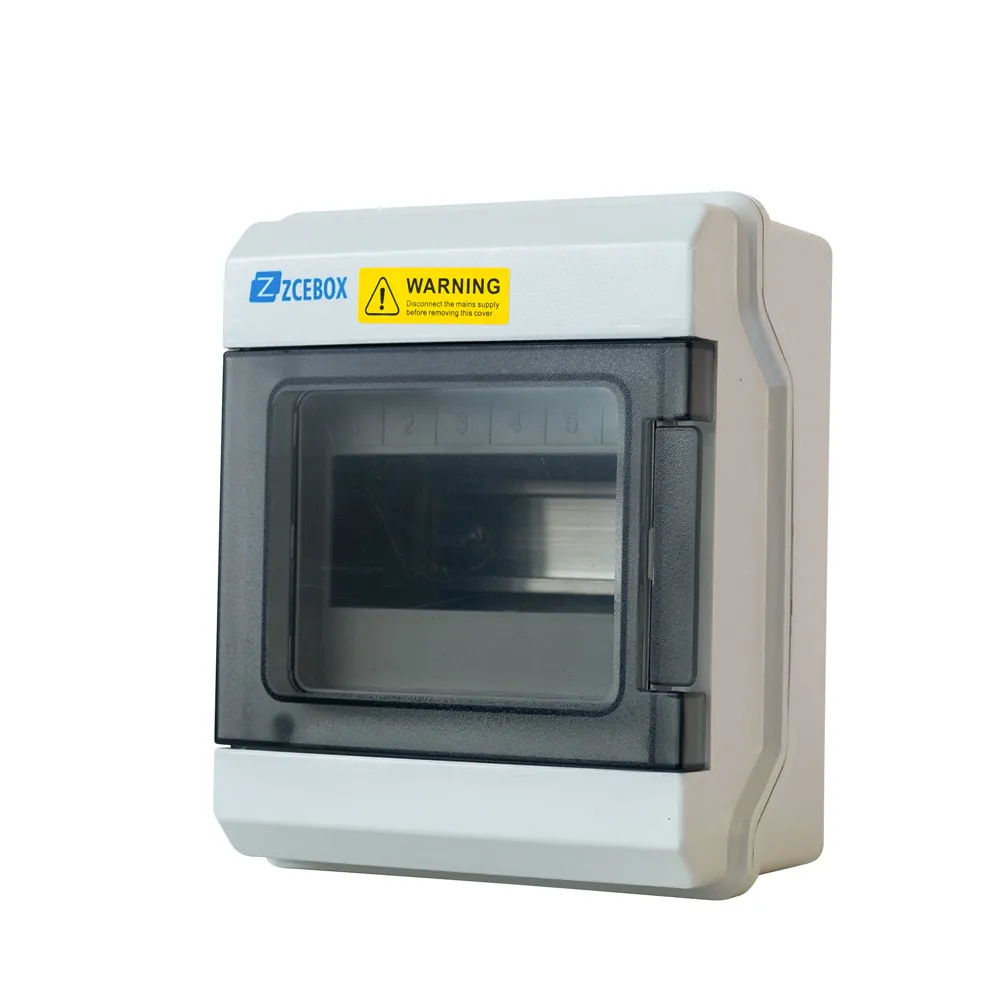

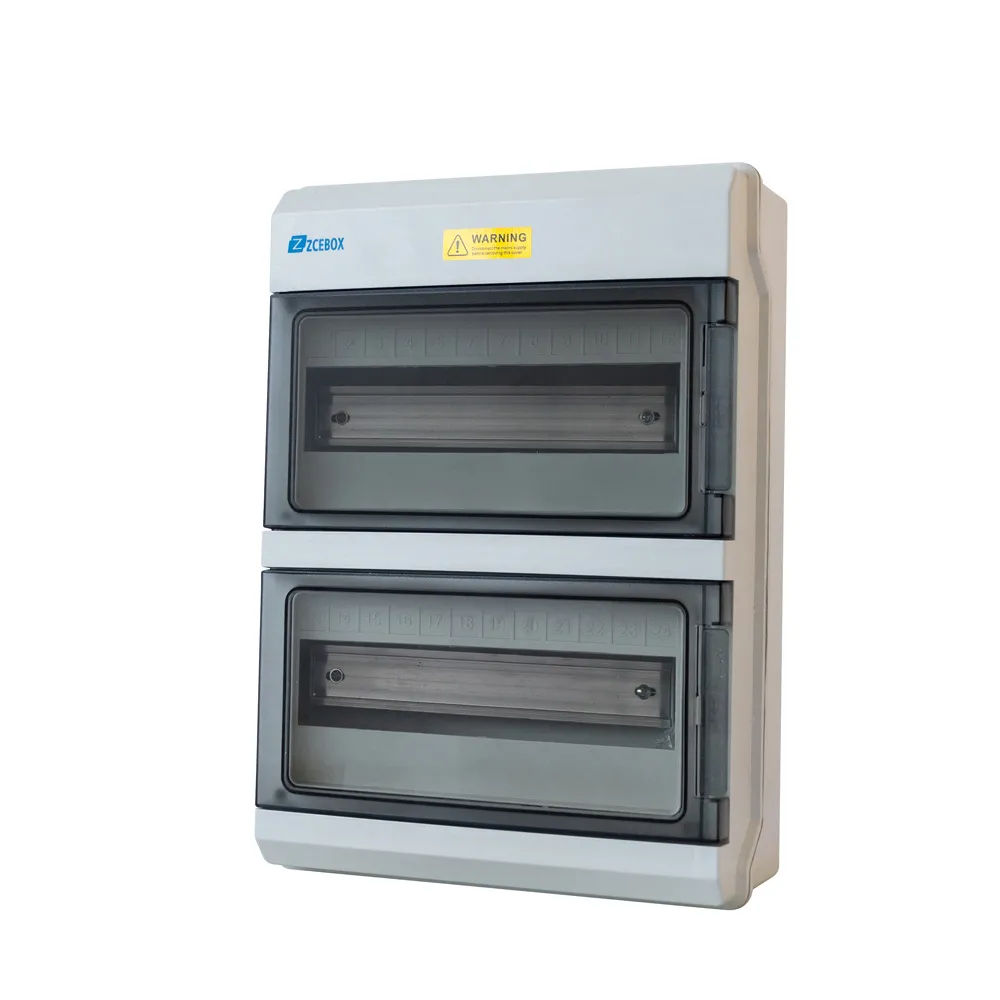

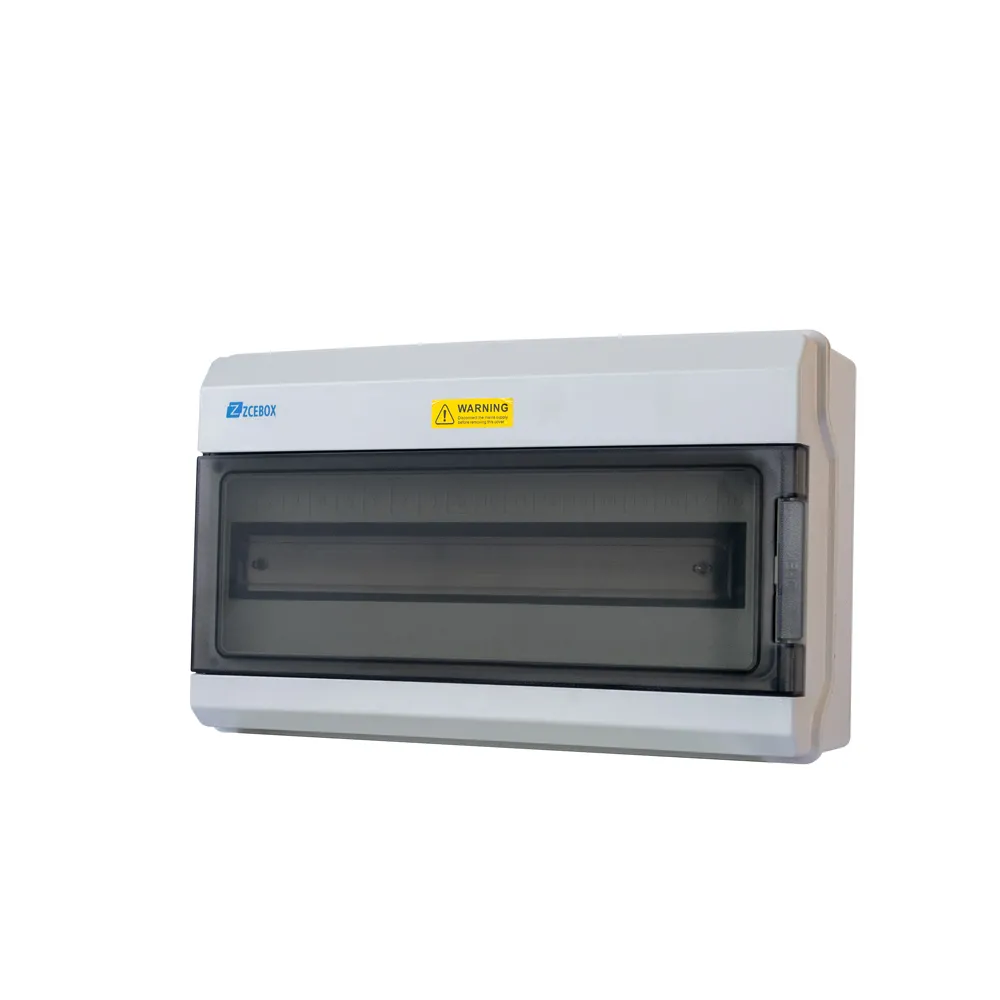

| Model | Din-rail (mm) | Terminal bar | (C)L*W*H (mm) | QTY/CTN | (C)W*H*D (mm) |
| LWHC-4 | 75 | 4+4 | 212X107X92 | 30 | 510X355X450 |
| LWHC-6 | 110 | 8+8 | 200X165X100 | 20 | 540X355X430 |
| LWHC-9 | 165 | 12+12 | 200X219X100 | 20 | 540X425X465 |
| LWHC-12 | 215 | 8+8 | 230X273X110 | 20 | 595X485X575 |
| LWHC-18 | 320 | 14+14 | 283X381X130 | 10 | 595X485X405 |
| LWHC-24 | 215*2 | 16*4 | 230X273X110 | 10 | 595X400X570 |
| LWHC-36 | 320*2 | 14*4 | 283X381X130 | 10 | 605X400X790 |
About Us
ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, junction box,MCB,consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
Why Choose Us
Certifications
Packaging&Shipping
Our Exhibition
Installation Case
Customize products for your project!
Get Questions
Frequently Asked Questions
Q: What is the highest IP level in your waterproof distribution box?
A: IP66,LWHC
Q: What are your modes of transportation?
A: Express delivery, sea transportation and air transportation are OK.
Q: Whether some samples can be provided?
A: Yes, We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Do you have a factory?
A: Yes, we have a factory
Q: Can I use letter of credit?
A: Yes
