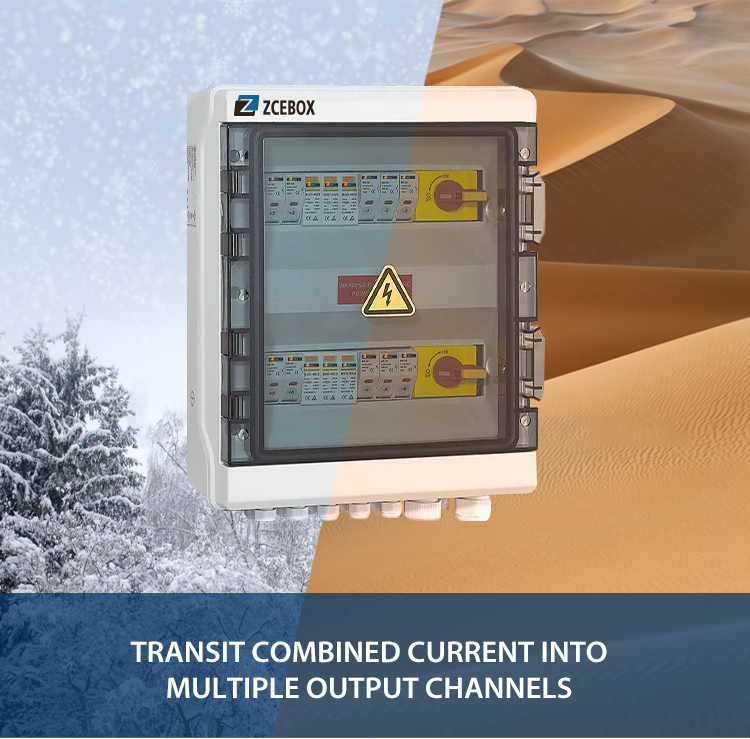

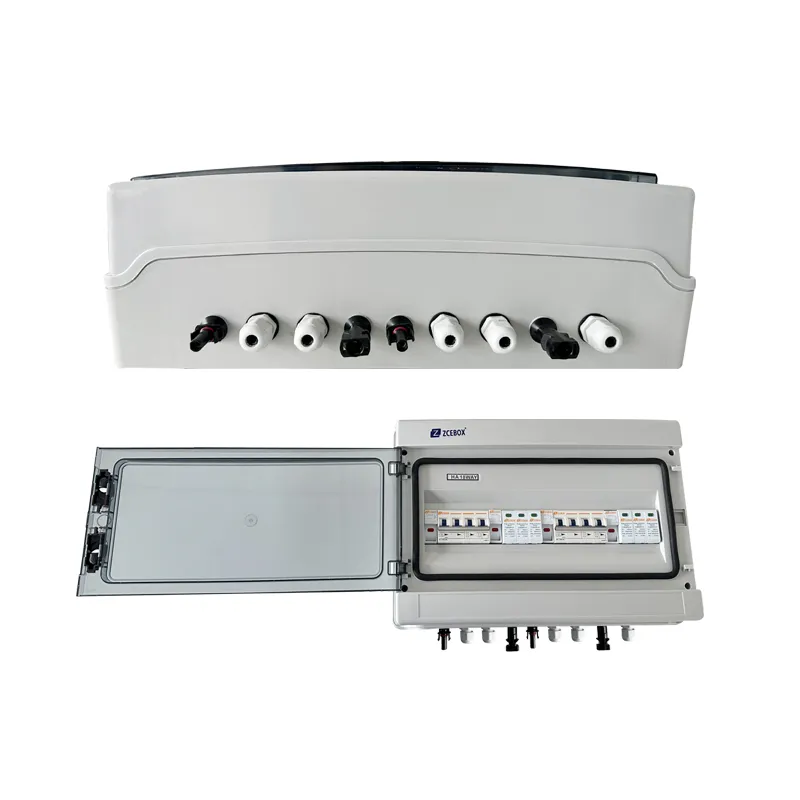

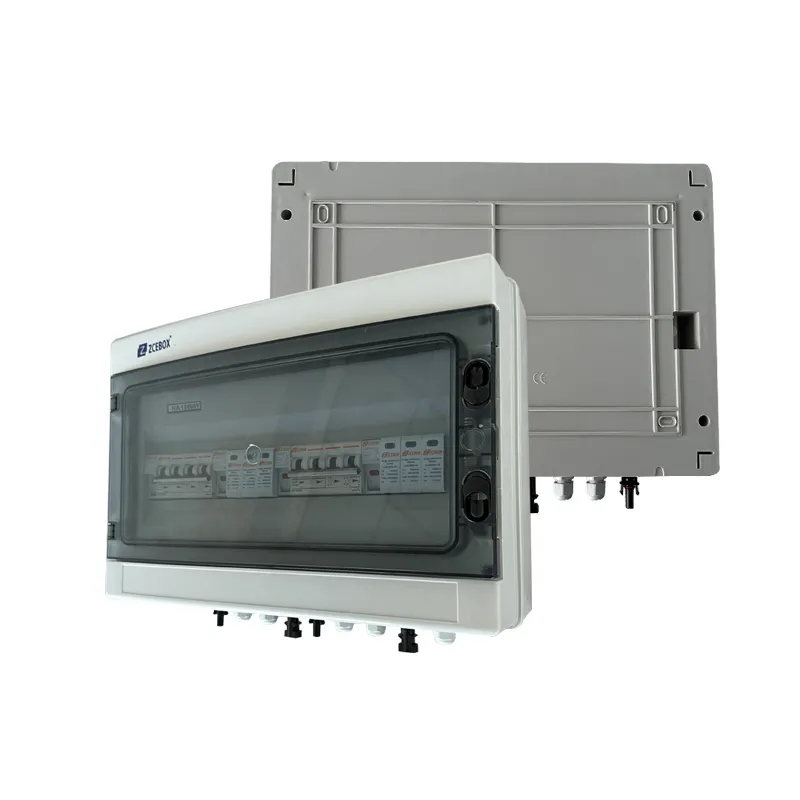

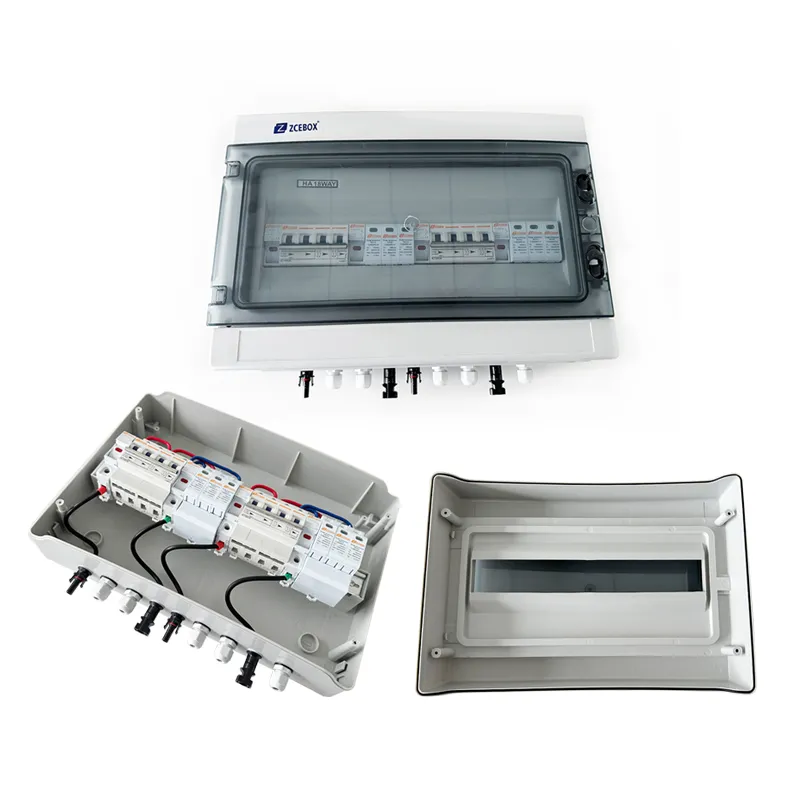

LWHLX Solar Distribution Box
Model Number：LWHLX
① Output capacity: 25 containers per month.
② Cooperate with multiple well-known brands, including Delixi, Weg, Honeywell.
③ Provide customers with OEM and ODM services.
④ Delivery can be coordinated, the shortest delivery 15 days.
Introduction
Have sufficient photovoltaic array output capacity.It is convenient to connect with the load.
It is easy to install and debug.

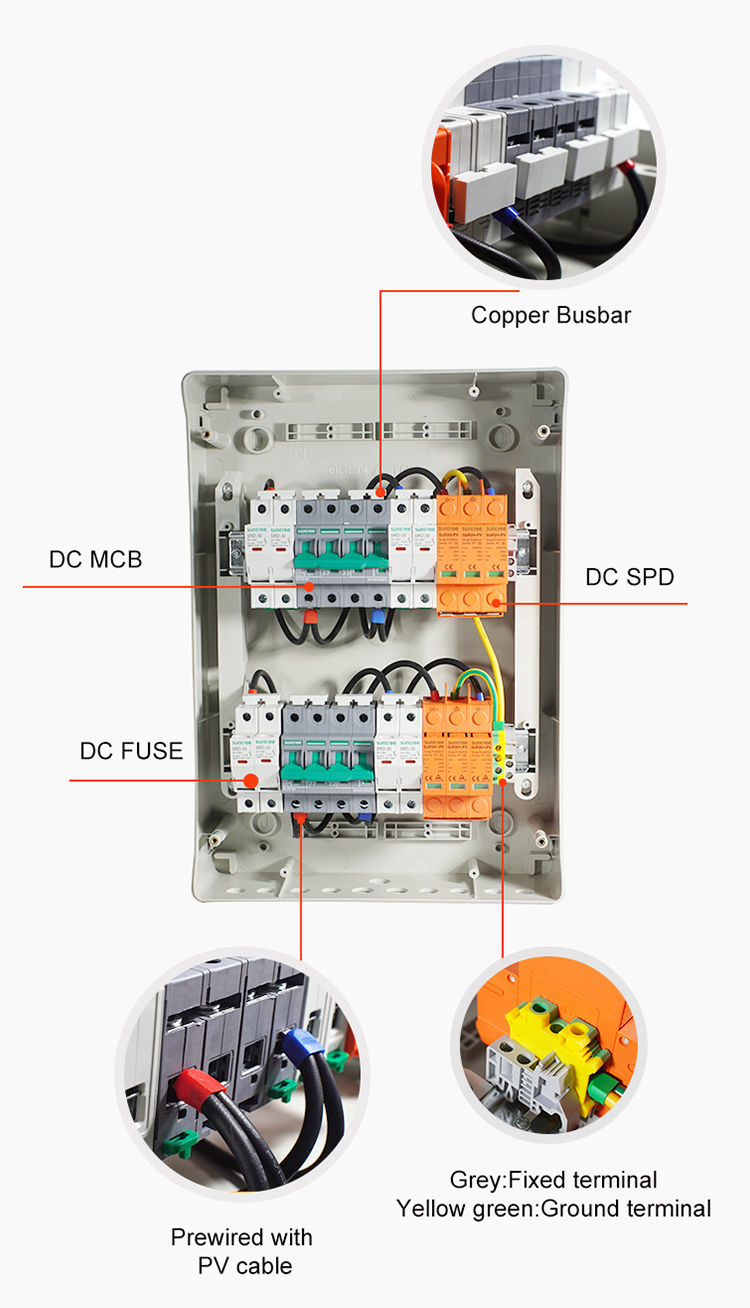

High reliability: With DC FUSE With DC Surge Protection Device With DC circuit breaker or DC load isolation switch.

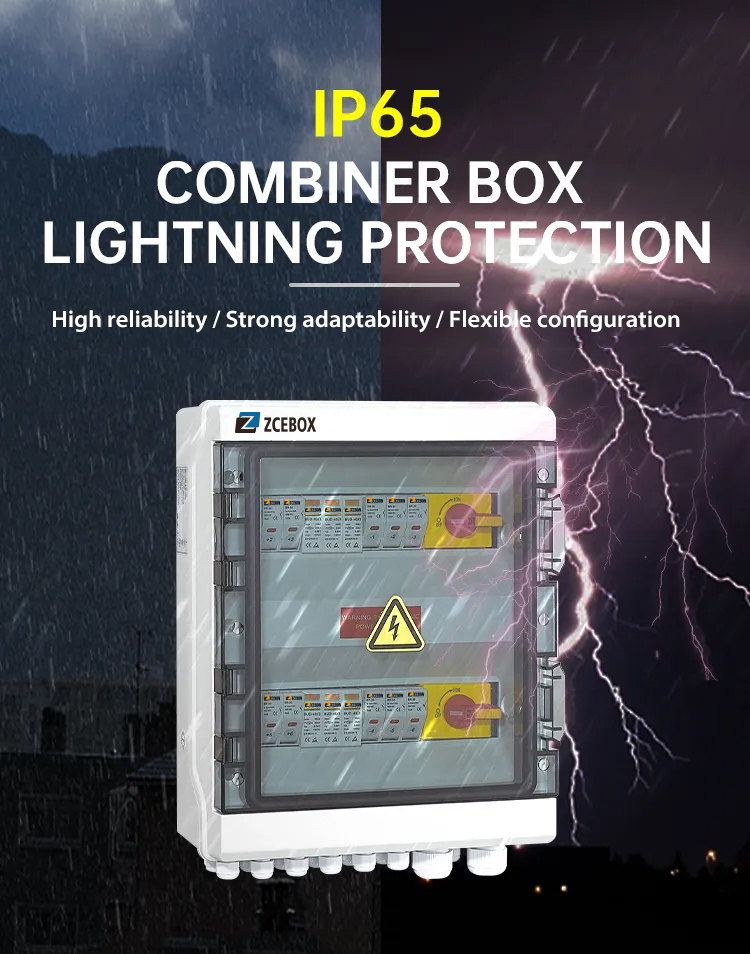

Strong adaptability: IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient wiring.

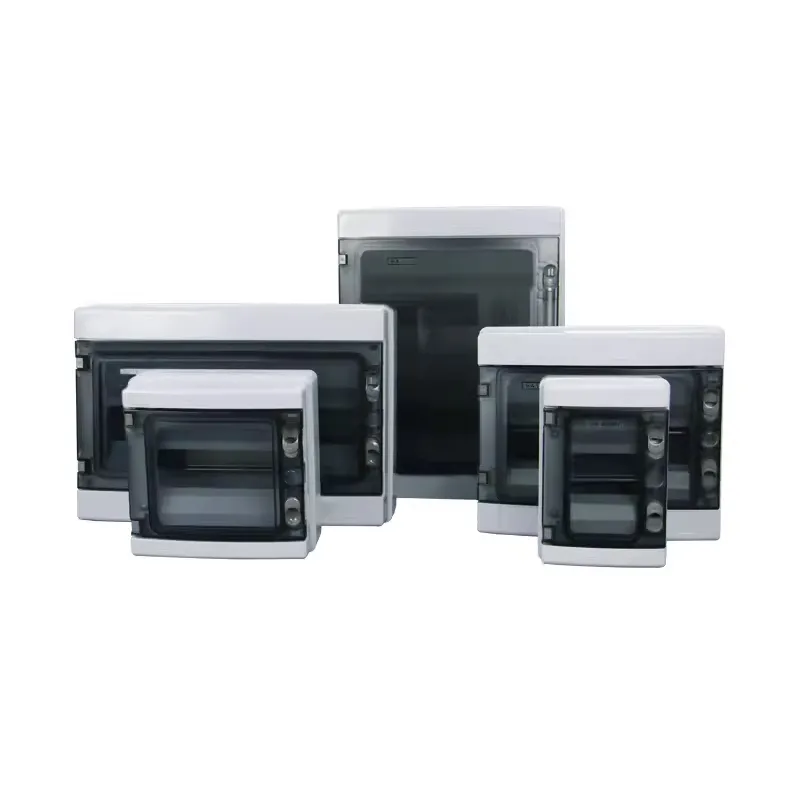

The box body is made of cold rolled steel and other metal materials.
Flexible configuration: Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified.
Products Description
| LWHLX | |
| Protection grade | IP65 |
| Output switch | DC isolation switch(standard)/DC circuit breaker(optional) |
| SMC4 Waterproof Connectors | Standard |
| PV dc fuse | Standard |
| PV surge protector | Standard |
| Monitoring module | Optional |
| Preventing diode | Optional |
| Box material | PVC |
| Installation method | Wall mounting type |
| Operating Temperature | -25℃~+55℃ |
| Elevation of temperature | 2km |
| Permissible relative humidity | 0-95%. no condensation |

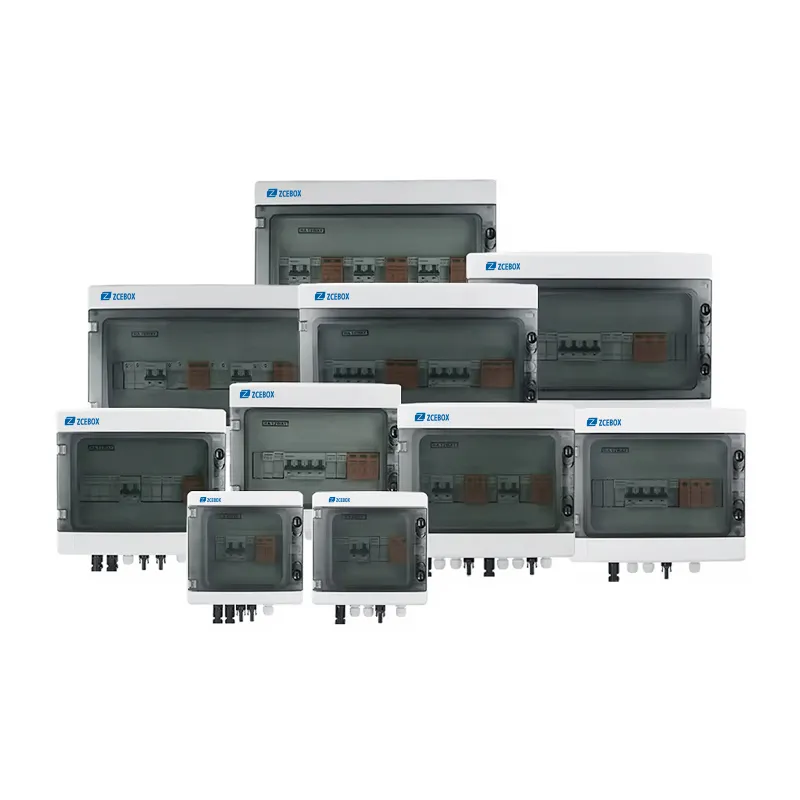

| Model | Maximum input current for each string | Maximum input strings | Maximum output switch current | Number of Output strings |
| LWHLX-PV1/1 | 15A | 1 | 16A/20A | 1 |
| LWHLX-PV2/1 | 15A | 2 | 20A/32A | 1 |
| LWHLX-PV4/1 | 15A | 4 | 50A/63A | 1 |
| LWHLX-PV4/2 | 15A | 4 | 20A/32A | 2 |
| LWHLX-PV6/2 | 15A | 6 | 32A/40A | 2 |
| LWHLX-PV6/3 | 15A | 6 | 20A/32A | 3 |
| LWHLX-PV8/2 | 15A | 8 | 20A/32A | 2 |
| LWHLX-PV6/1 | 15A | 6 | 20A/32A | 1 |
| LWHLX-PV8/1 | 15A | 8 | 125A | 1 |
| LWHLX-PV12/1 | 15A | 12 | 160A | 1 |
| LWHLX-PV16/1 | 15A | 16 | 200A | 1 |
About Us
ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, junction box,MCB,consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
Why Choose Us
Certifications
Packaging&Shipping
Our Exhibition
Installation Case
Customize products for your project!
Get Questions
Frequently Asked Questions
Q: What information should I let you know if I want to get a quotation?
A: 1. The size of products. 2. The color. 3. The quantity.
Q: Can we design customer packing?
A: Yes.We can.
Q: If I have custom made requirement, do you have person to design according to my concept?
A: Certainly.our design team will do for you.
Q: How to proceed an order for DB box or junction box?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q: If you do not have the size I need, can you produced it?
A: Yes, of course! we support OEM and ODM service, we can produce the box according to your drawing.
