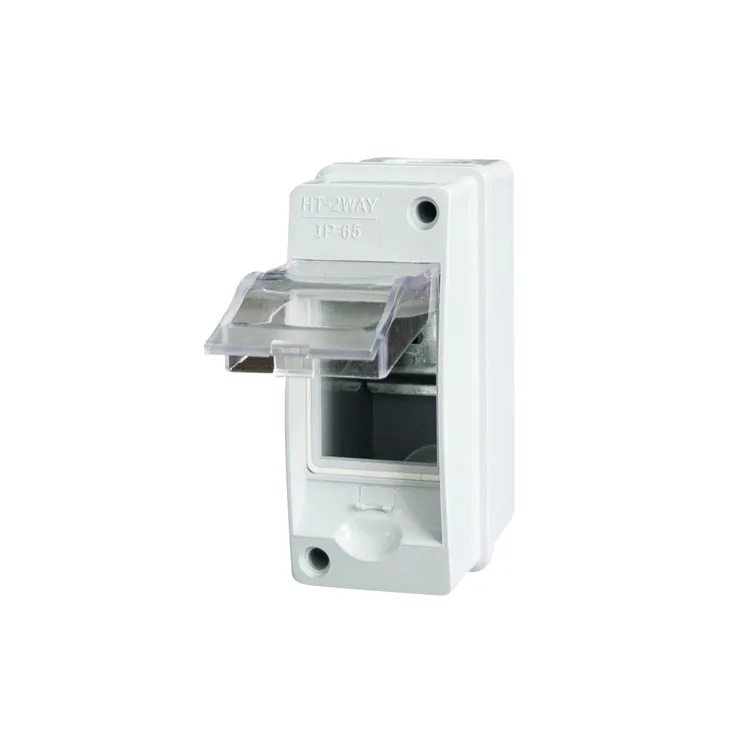

LWHT Plastic Distribution Box
Model Number：LWHT-2
① Output capacity: 25 containers per month.
② Cooperate with multiple well-known brands, including Delixi, Weg, Honeywell.
③ Provide customers with OEM and ODM services.
④ Delivery can be coordinated, the shortest delivery 15 days.
Introduction
With IEC60439-3 standard, LWHT series distribution box is attractive and durable, safe and reliable, which is widely used in various places such as factories, mansions, residences, shopping centers and so on.
Products Description
| Waterproof Distribution Box LWHT | |
| Standard | IEC60439-3 |
| Approval | CE, RoHS,HF test,IK test,ISO9001 |
| Color of base | Gray |
| The color of door | Transparent |
| Mounting type | Surface |
| Protection grade | IP65 |
| Modules (No.) | 2;5;8;12;15;18;24 |

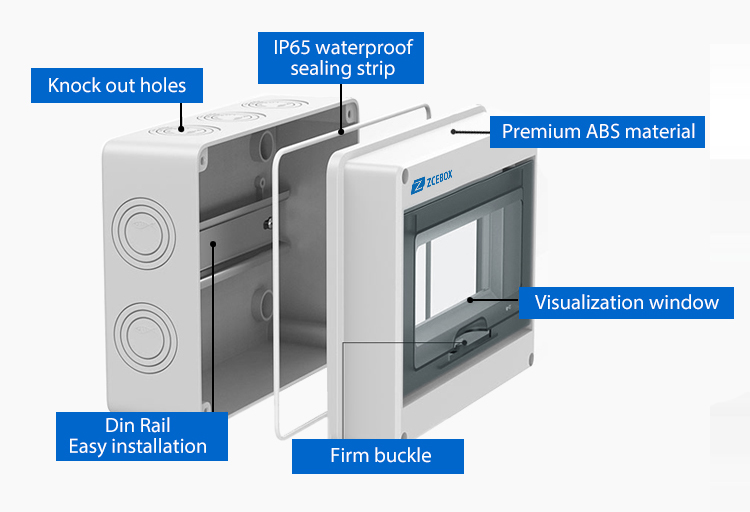

| Material: box shell | ABS; Door:PC; Zero bar/earth bar:copper |
| Fire resistence | 650 ℃ / 30s |
| Ambient temperature (C)。 | -5~+40,50% humidity permitted under max +40℃ |
| Storage temperature (℃） | -40-+ 75℃ |
| Model | Din-rail (mm) | Terminal bar | (C)L*W*H (mm) | QTY/CTN | (C)W*H*D (mm) |
| LWHT-2 | 45 | - | 120*55*90 | 100 | 535*260*465 |

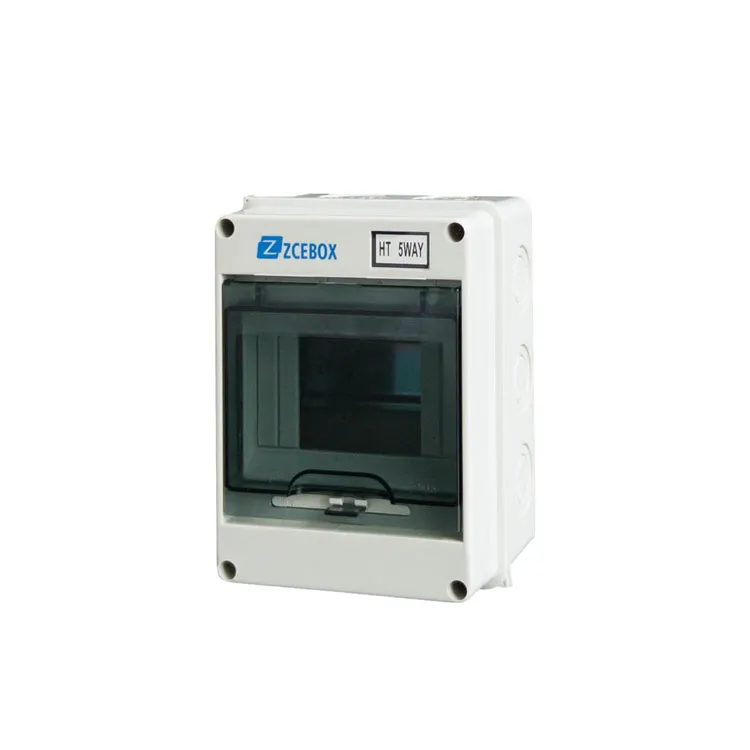

| LWHT-5 | 105 | 3+3 | 119*159*90 | 40 | 495*335*475 |

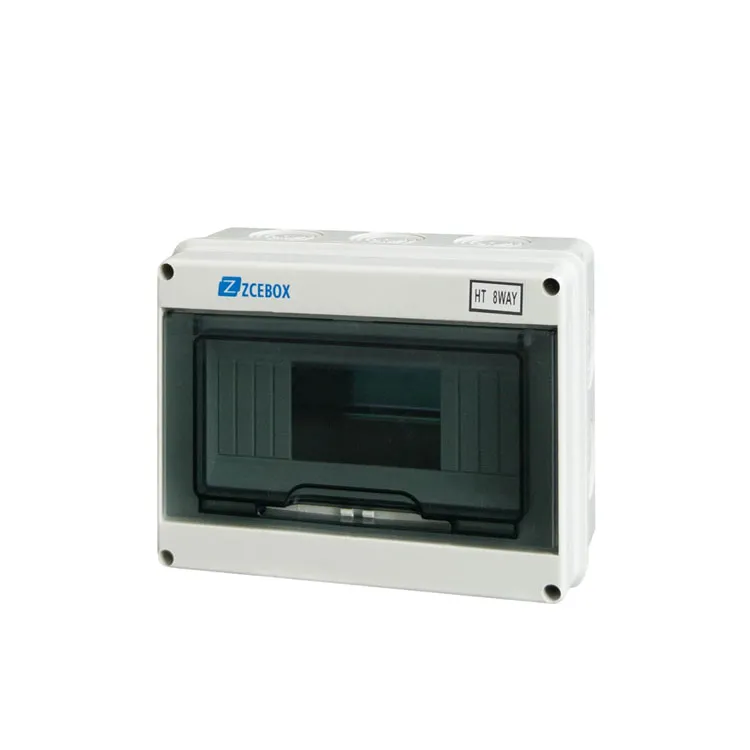

| LWHT-8 | 175 | 4+5 | 20*155*90 | 30 | 480*480*420 |
| LWHT-12 | 230 | 8+5 | 255*198*108 | 20 | 550*400*530 |

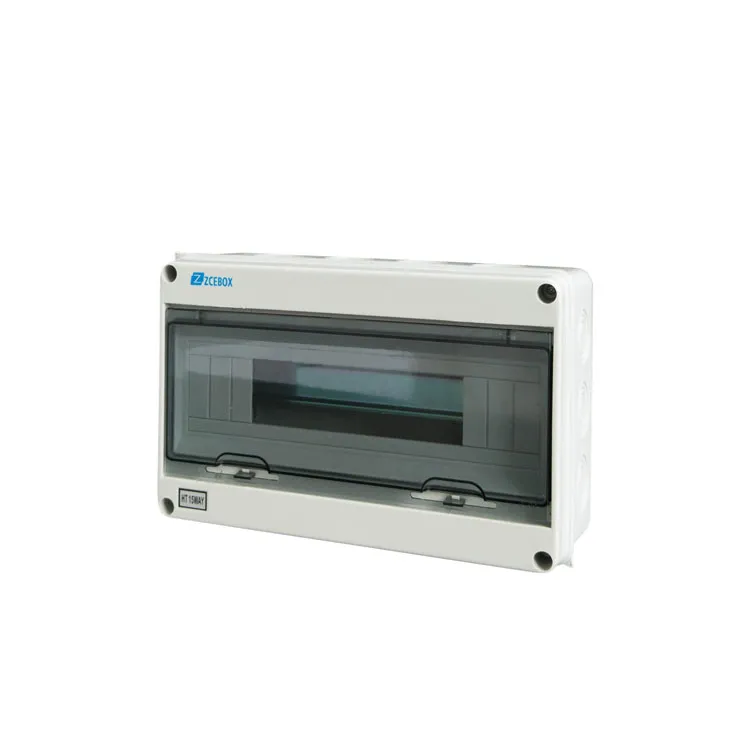

| LWHT-15 | 290 | 8+6 | 309*198*108 | 15 | 613*555*325 |

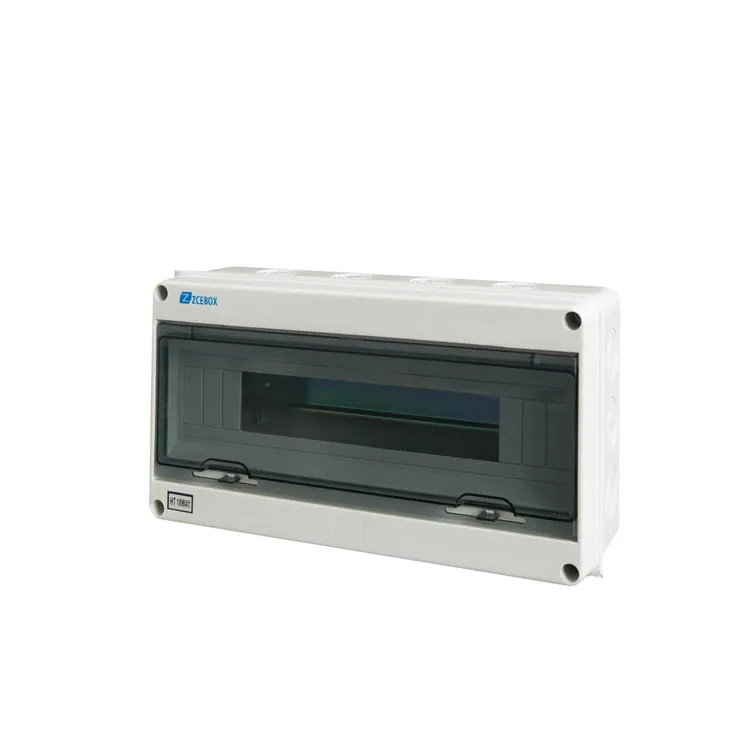

| LWHT-18 | 320 | 8*8 | 363*198*100 | 15 | 610*560*380 |

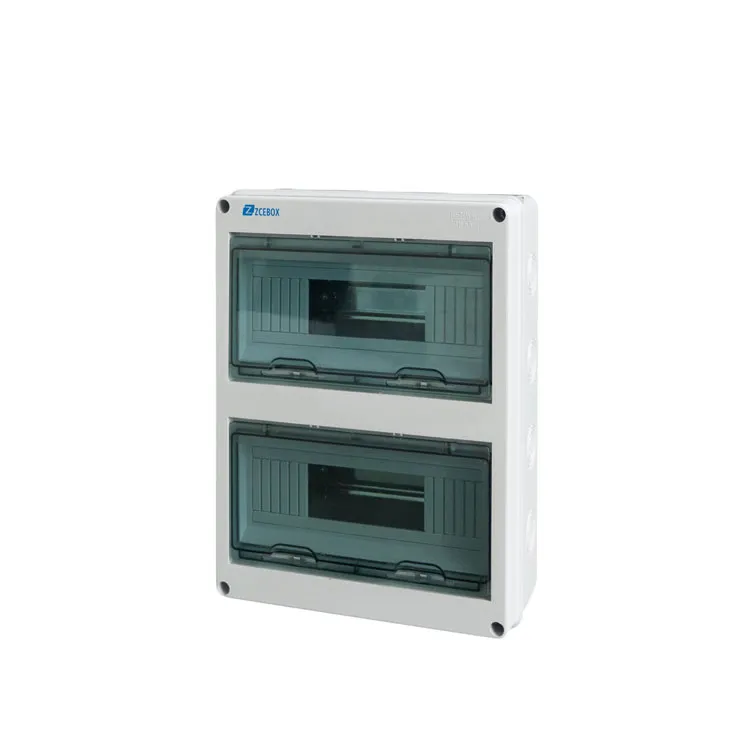

| LWHT-24 | 230*2 | (8+5)*2 | 360*280*108 | 10 | 595*380*320 |
About Us
ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, junction box,MCB,consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
Why Choose Us
Certifications
Packaging&Shipping
Our Exhibition
Installation Case
Customize products for your project!
Get Questions
Frequently Asked Questions
Q: Which type of distribution box is recommended for solar energy industry?
A: LWHA
Q: What are your strengths?
A: We are a factory, price concessions, can provide you with OEM services
Q: Is it possible to label production?
A: We have professionals to help you design.
Q: What certifications have you passed?
A: CE, CB, ISO9001, ROHS, HF and IK test
Q: What kind of shipping?
A: According to the quantity of products, international express, air freight, sea freight
