Mcb Breaker

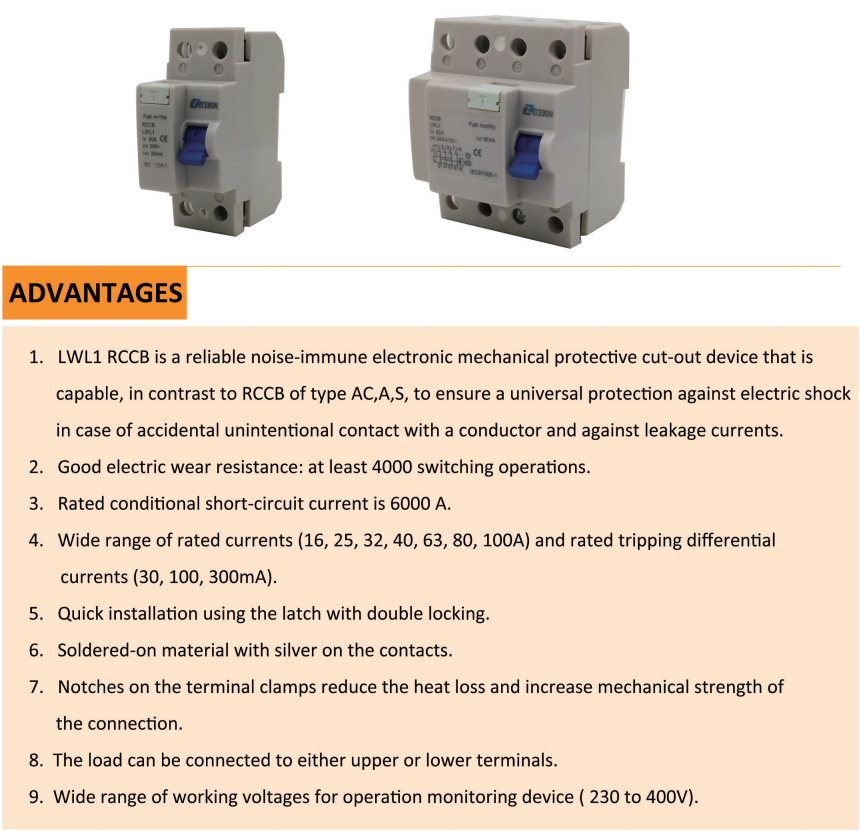

Advantages

• LWL1 RCCB is a reliable noise-immune electronic mechanical protective cut-out device that is capable, in contrast to RCCB of type AC,A,S, to ensure a universal protection against electric shock in case of accidental unintentional contact with a conductor and against leakage currents.

• Good electric wear resistance: at least 4000 switching operations.

• Rated conditional short-circuit current is 6000 A.

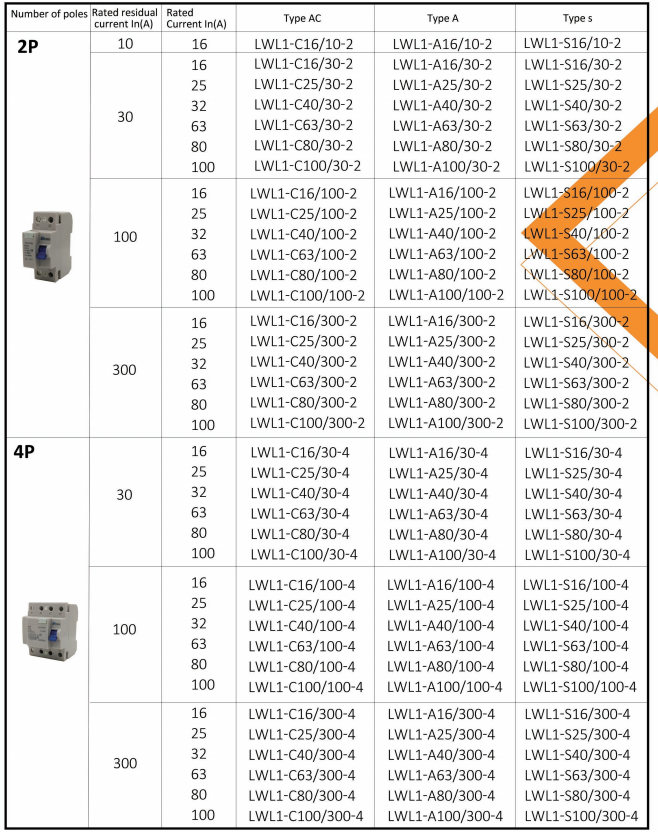

• Wide range of rated currents (16, 25, 32, 40, 63, 80, 100А) and rated tripping differential currents (30, 100, 300mA).

• Quick installation using the latch with double locking.

• Soldered-on material with silver on the contacts.

• Notches on the terminal clamps reduce the heat loss and increase mechanical strength of the connection.

• The load can be connected to either upper or lower terminals.

• Wide range of working voltages for operation monitoring device ( 230 to 400V).

ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, junction box,MCB,consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
